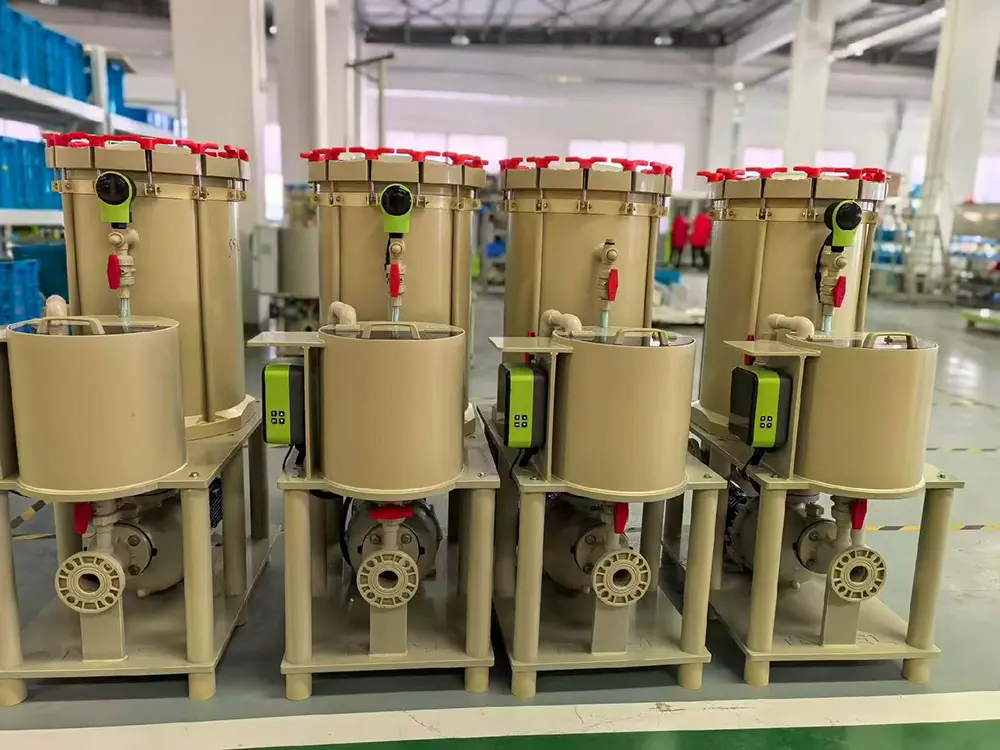

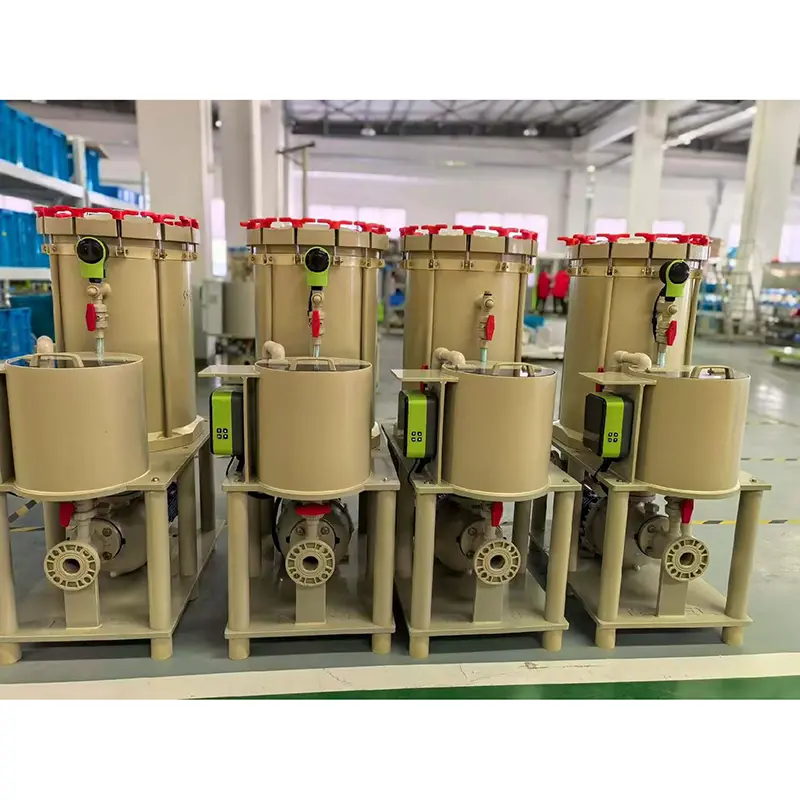

Electroplating Filter System

For many electroplating operations, a conventional filter system provides the right balance of performance and affordability. When your application doesn’t require continuous filtration or sub-micron precision, a standard electroplating filter offers reliable, cost-effective bath maintenance.

Our conventional electroplating filter units are designed for electroplating, anodizing, and chemical filtration applications. Constructed from corrosion-resistant polypropylene (PP) or PVDF, these filters withstand harsh acids, alkalis, and elevated temperatures up to 70-80℃.

This industrial filter system accepts standard filter cartridges (5-50μm) or filter bags, making it easy to maintain with readily available consumables worldwide. A magnetic drive pump eliminates seal leakage, preventing corrosive bath solution from escaping.

How Conventional Filtration Works

The electroplating bath filter operates on the forced circulation principle:

The magnetic drive pump draws contaminated plating solution from the tankSolution is pushed through the filter chamber containing filter cartridges or bags

Filter media traps suspended particles (precision depends on cartridge rating)

Cleaned solution returns to the plating tank

Pressure gauge indicates when cartridges require replacement

Unlike smart filters with automatic backwash, conventional filter systems require periodic manual cartridge changes. However, for many standard plating applications (zinc, copper, anodizing), this is perfectly acceptable and cost-effective.

Key components include:

Filter Chamber: PP injection-molded body, corrosion-resistant

Magnetic Drive Pump: Seal-less design prevents leakage

Filter Cartridges: Polypropylene, cotton, or activated carbon (5-50μm)

Pressure Gauge: Monitors filter loading

Safety Switch: Auto shut-off on overload

Key Specifications

Flow capacities range from 20 m³/hour for smaller units up to 150 m³/hour for larger systems.

Key Features | Advantages

✔ Corrosion-Resistant Construction

Made from PP / PVDF material, resistant to strong acid and alkali environments.

✔ Leak-Free Magnetic Pump

Magnetic drive design eliminates shaft seals and prevents leakage of corrosive liquid.

✔ High Filtration Accuracy

Supports 5–50 micron filtration, down to 0.5 micron with fine cartridges.

✔ Flexible Filter Media

Compatible with:

● Cartridge filters

● Filter bags

● Activated carbon filters

✔ Easy Maintenance

Tool-free opening design for fast cartridge replacement.

✔ Industrial Safety Design

Overload protection and pressure monitoring system.

Available Configurations

This plating bath circulation filter can also be configured with active carbon treatment devices for removing organic contaminants from bath solutions.

Applications

Our standard electroplating filter is suitable for:

This chemical filtration unit is also suitable for non-electrolytic applications including wastewater pre-treatment and chemical recirculation systems.

Why Choose Our Electroplating Filter

Factory Direct Supply

Competitive pricing with stable production capacity.

Standard-Compatible Design

Interchangeable with most global filtration systems.

Fast Delivery

Standard models: 15–30 days production time.

Industrial Reliability

Designed for 24/7 continuous operation.

Global Support

Spare parts and technical assistance available worldwide.

Typical Problems We Solve

Problem 1: Poor plating quality due to contamination

✔ Solution: Continuous bath filtration improves stability

Problem 2: High maintenance cost of plating bath

✔ Solution: Extend bath life with impurity removal

Problem 3: Equipment leakage risk

✔ Solution: Magnetic drive pump eliminates seal failure

Problem 4: High downtime in production

✔ Solution: Easy cartridge replacement reduces downtime

FAQ

Q1: What is an electroplating filter used for?

It removes impurities from plating solutions to maintain stable coating quality.

Q2: How often should the filter cartridge be replaced?

It depends on production load, typically when pressure increases significantly.

Q3: Can it be used for anodizing lines?

Yes, it is widely used in anodizing and chemical treatment systems.

Q4: What filtration precision is available?

Standard 5–50 micron, with optional 0.5 micron high-precision filters.
