Ultrasonic Cleaning Machine

An ultrasonic cleaning machine is an industrial surface preparation system that uses high-frequency sound waves (typically 20–80 kHz) to generate cavitation bubbles in a liquid cleaning solution.

When these microscopic bubbles collapse, they produce high-energy shock waves that remove:

Oils and grease

Polishing compounds

Rust particles

Microscopic debris

Contaminants in blind holes and threads

This makes ultrasonic cleaning one of the most effective pre-treatment methods for electroplating, anodizing, and precision manufacturing industries.

Why Ultrasonic Cleaning Is Critical in Electroplating

In electroplating processes, surface contamination is the main cause of:

● Poor coating adhesion

● Peeling and blistering

● Uneven plating thickness

● High rejection rates

Ultrasonic cleaning solves these problems by ensuring the metal surface is completely and uniformly cleaned at a microscopic level, including complex geometries that manual or chemical cleaning cannot reach.

This is why ultrasonic cleaning is considered a mandatory pre-treatment step in modern electroplating production lines.

Key Specifications

How Ultrasonic Cleaning Works

Ultrasonic cleaning operates through a physical process called cavitation:

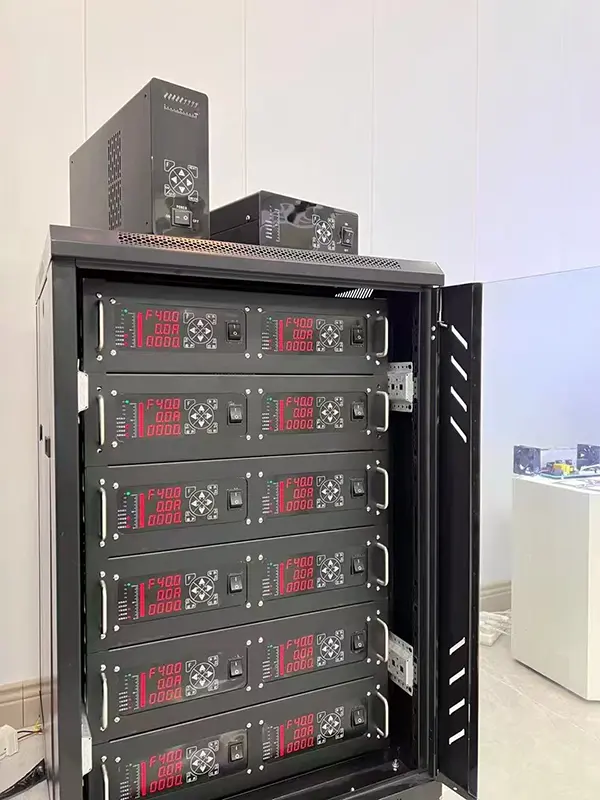

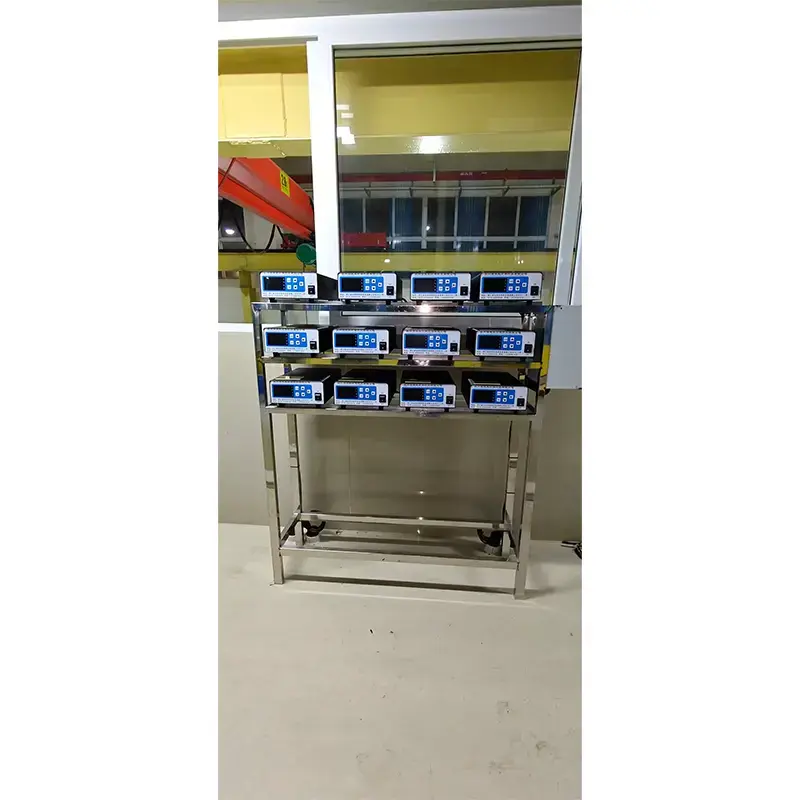

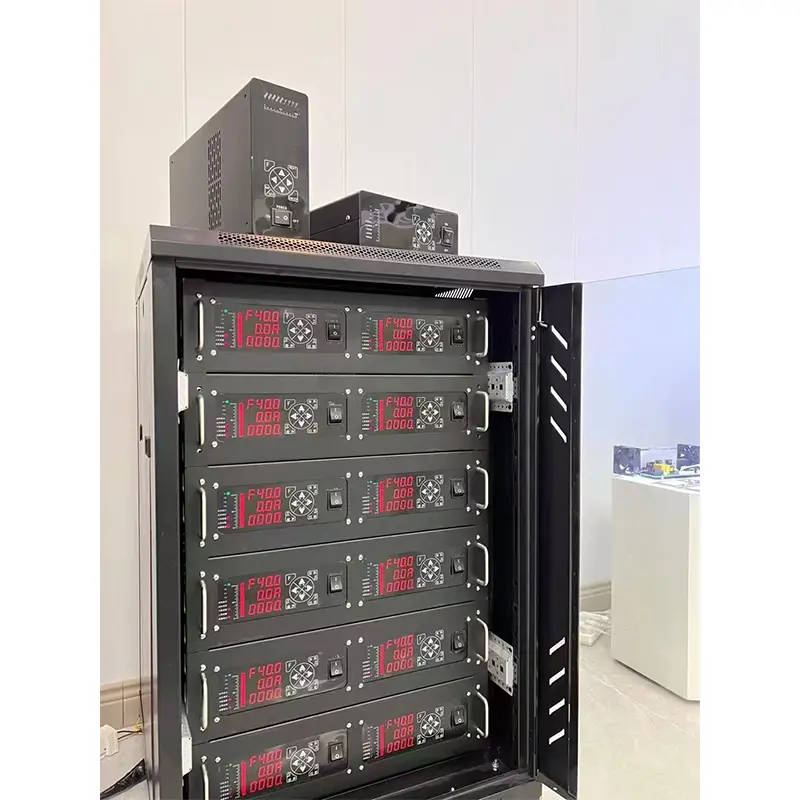

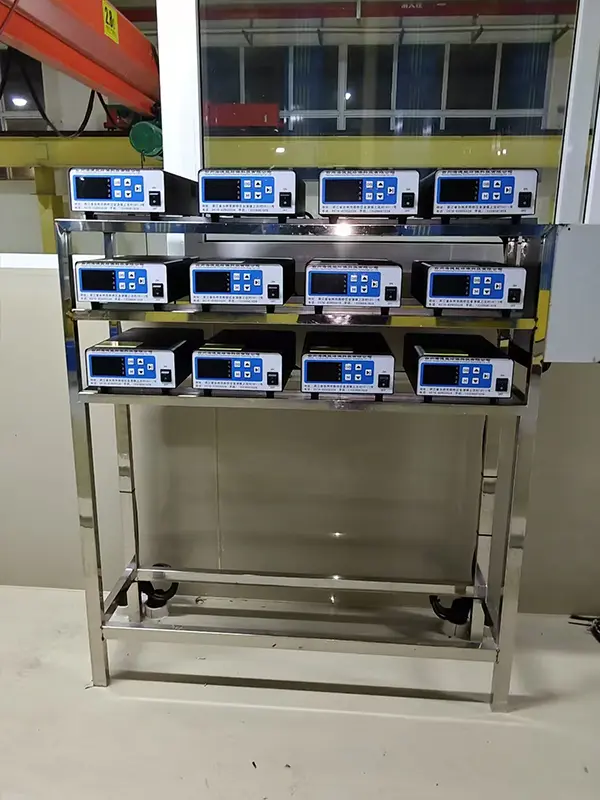

1. Electrical energy is converted into high-frequency mechanical vibration

2. Vibrations generate microscopic vacuum bubbles in the cleaning liquid

3. Bubbles collapse violently under pressure

4. The implosion creates localized temperatures up to 5,000°C and pressure up to 1,000 atm

5. Contaminants are removed from the surface instantly

Unlike chemical cleaning, this process uses physical energy + mild detergent, making it more efficient and environmentally friendly.

Key Advantages for Industrial Electroplating

Ultrasonic cleaning systems provide significant benefits:

Improves plating adhesion strength

Reduces rejection rate and rework cost

Cleans blind holes, threads, and complex shapes

Ensures consistent surface activation

Compatible with copper, nickel, chrome, and zinc plating

Eco-friendly cleaning process with reduced chemical usage

Industrial Cleaning Process Flow

A typical electroplating pre-treatment line:

1. Ultrasonic Degreasing (55–65°C, 3–8 min)

2. Overflow Rinsing (1–2 min)

3. Secondary Ultrasonic Rinse (optional, 2–3 min)

4. Hot Water Rinse

5. Hot Air Drying (80–100°C)

This multi-stage process ensures maximum surface cleanliness and plating reliability.

Product Configurations

We provide flexible system designs based on production requirements:

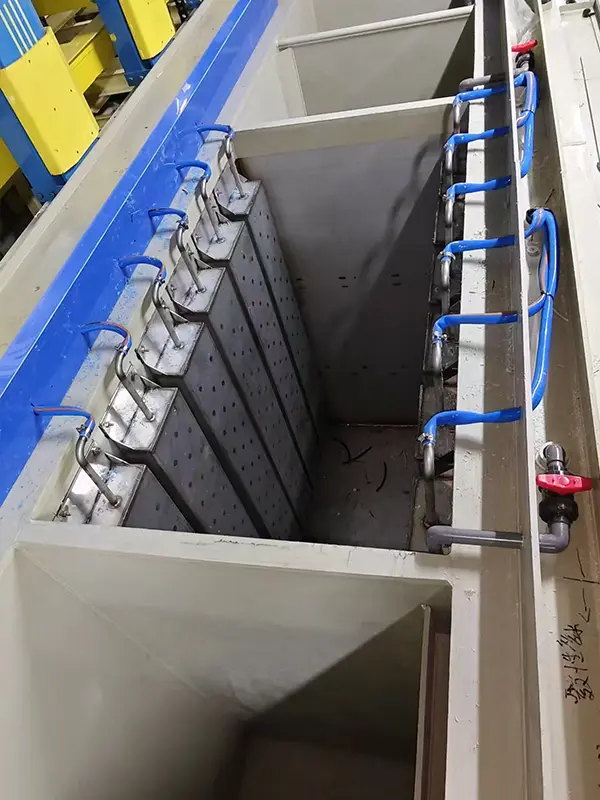

1. Standalone Ultrasonic Tank

● Manual or semi-automatic operation

● Suitable for small batch production

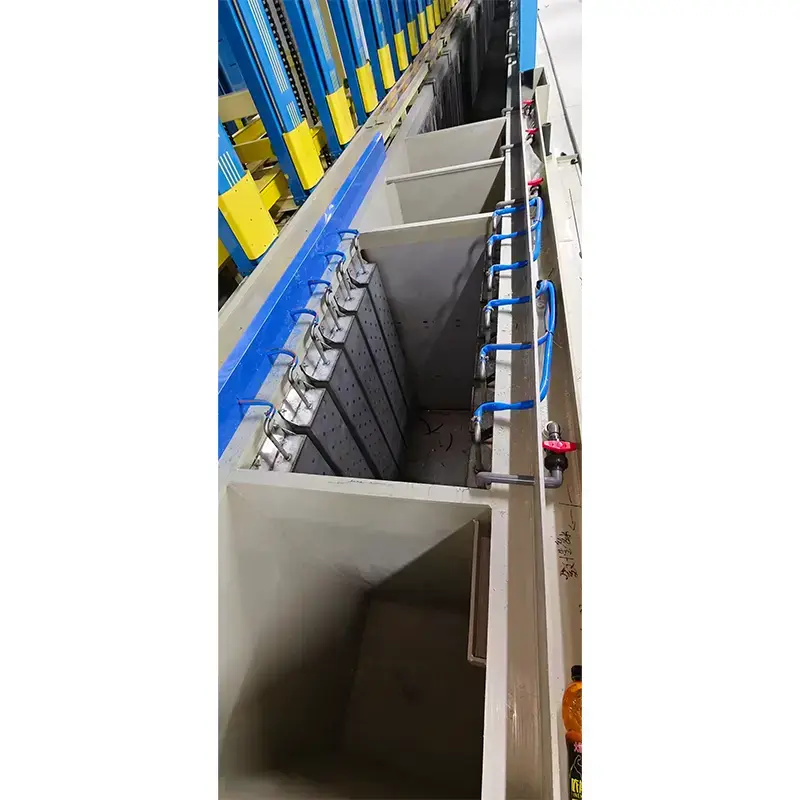

2. Multi-Tank Ultrasonic Cleaning Line

● Degreasing + rinsing + drying integration

● PLC + HMI automated control

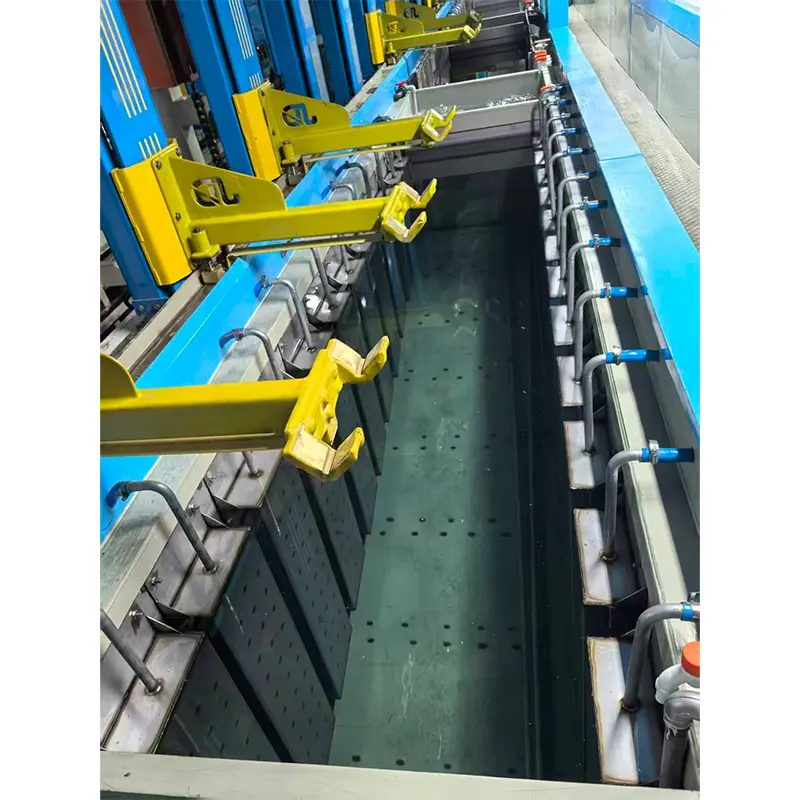

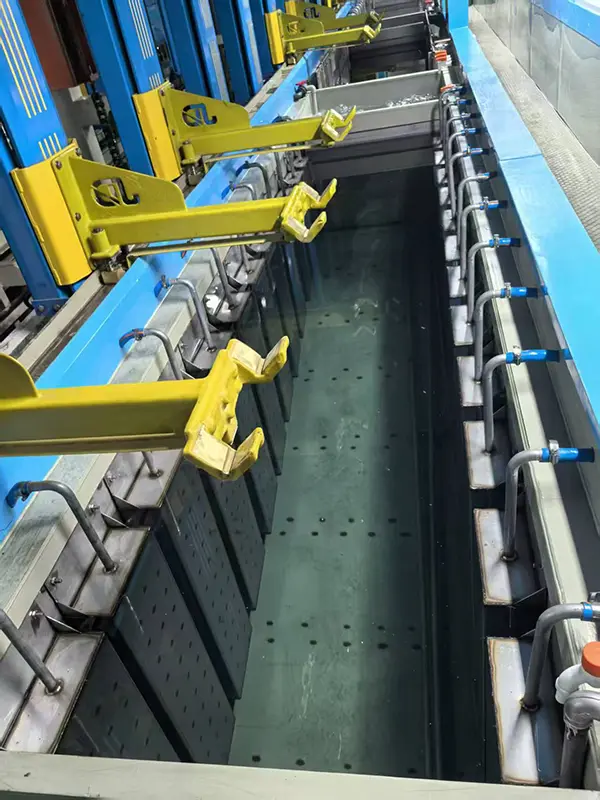

3. Fully Automated Pre-Treatment Line

● Conveyor or robotic transfer system

● Integrated into electroplating production line

● 24/7 continuous operation

Applications

Our ultrasonic cleaning machines are widely used in:

● Automotive parts manufacturing

● Aerospace precision components

● Electronics and PCB manufacturing

● Metal stamping and machining

● Medical device production

● Jewelry and precision hardware

● Electroplating and surface finishing plants

Ultrasonic Cleaning vs Traditional Cleaning

Ultrasonic cleaning provides the highest consistency for industrial electroplating pre-treatment.

Why Choose JUNDA

Taizhou Junda Intelligent Equipment Co., Ltd. is a professional manufacturer of automated electroplating and surface treatment systems.

We provide:

● Over 10 years of electroplating equipment experience

● Custom-engineered ultrasonic cleaning systems

● Full electroplating pre-treatment line integration

● PLC-based automation solutions

● CE-certified industrial equipment

● Turnkey project support (design → manufacturing → installation → training)

● Global technical service support

Certifications

Our manufacturing quality and environmental engineering capability are supported by:

● Zhejiang Province Environmental Engineering Capability Certification

● Environmental Protection Equipment Construction Qualification

These certifications demonstrate our compliance with industrial environmental and engineering standards.

FAQ

What is ultrasonic cleaning used for in electroplating?

It is used to remove oil, grease, and microscopic contaminants before plating to ensure strong adhesion and surface quality.

Can ultrasonic cleaning clean blind holes and threads?

Yes. Cavitation bubbles penetrate complex geometries that manual cleaning cannot reach.

What frequency is best for metal cleaning?

20–40 kHz is used for heavy contamination, while 40–80 kHz is used for precision cleaning.

Is ultrasonic cleaning environmentally friendly?

Yes. It reduces the need for harsh chemical solvents and improves cleaning efficiency.

Contact Us

We provide customized ultrasonic cleaning systems based on your production line, part geometry, and capacity requirements.

Taizhou Junda Intelligent Equipment Co., Ltd. Address: No. 24, Chuangye Road, Sanjia Town, Jiaojiang District, Taizhou City, Zhejiang, China Email: alice911.export@gmail.com Tel: +86-15557618123

Contact us for a tailored ultrasonic cleaning solution and quotation.
