Nickel-Chrome Vertical Lift Plating Line

Our Nickel-Chrome Vertical Lift Plating Line is a fully automatic electroplating system specifically designed for high-volume decorative finishing requiring exceptional corrosion resistance and brilliant appearance. The double nickel layer combined with decorative chrome provides superior protection and a mirror-like finish that meets the most demanding aesthetic standards.

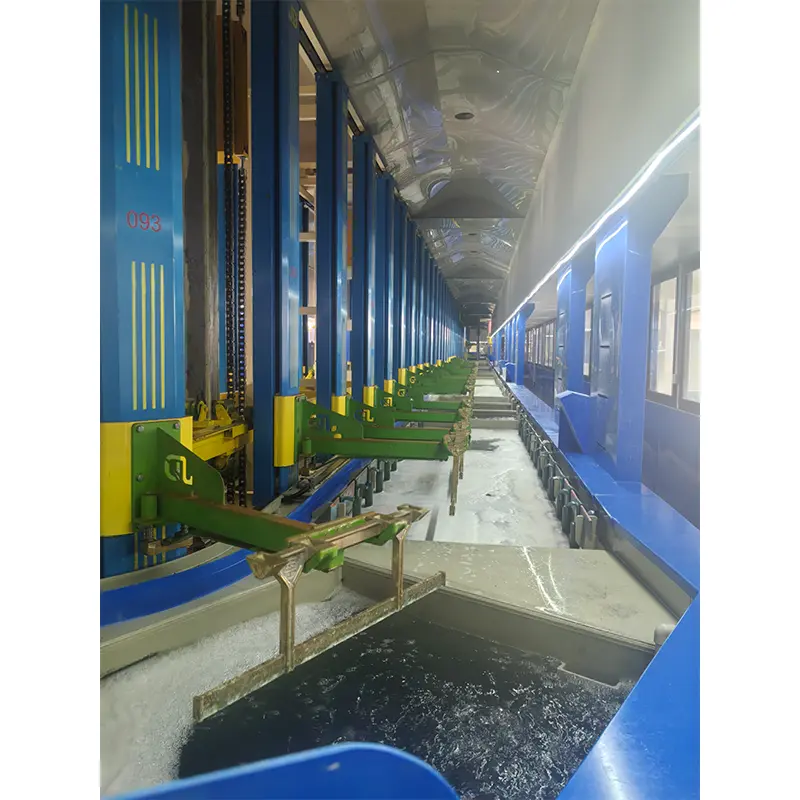

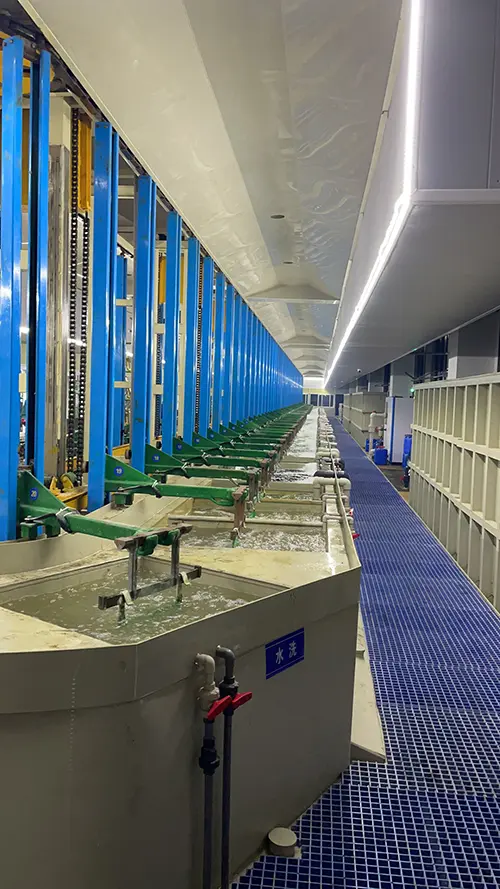

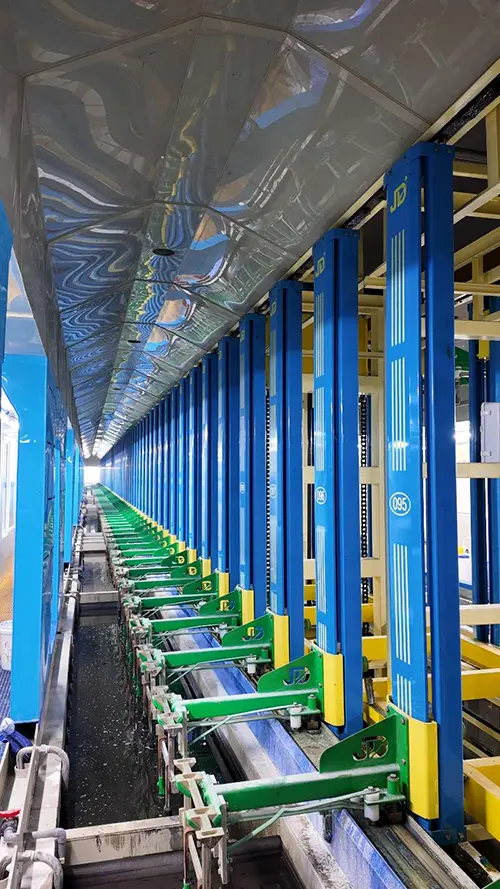

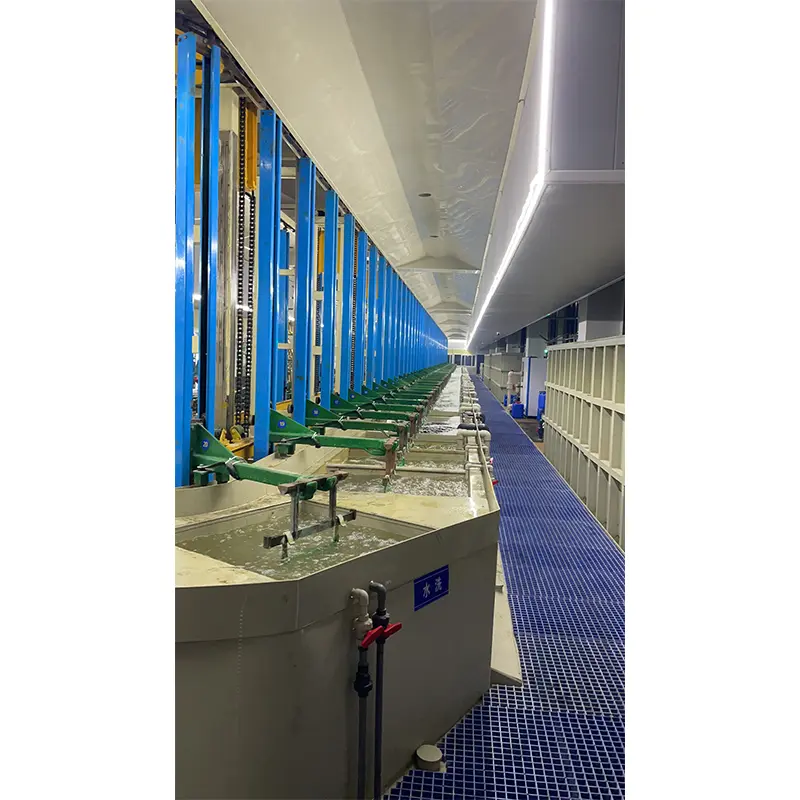

This double nickel decorative plating line utilizes a closed-loop circular track with vertical lift hoist mechanism. The PLC-controlled system ensures precise positioning and consistent plating quality batch after batch.

Key Specifications

What makes this line different from standard duplex nickel lines

Flexible Process Control System

Traditional plating lines operate according to fixed routes and fixed processing times. When process requirements change, equipment suppliers often need to modify the control program.

JUNDA's process control system allows production personnel to adjust process routes and treatment times directly through process tables.

Main Functions

● Modify treatment time for individual process tanks

● Adjust dripping time between tanks

● Create new process recipes without PLC reprogramming

● Support multiple process routes on one production line

● Reduce product changeover time

● Support small-batch and multi-product production

Automatic Rework Function

For processes such as:

● Decorative chrome plating

● Gold plating

● Chemical polishing

● Coloring treatment

If inspection results do not meet requirements, operators can return the workpiece to the corresponding process tank for additional treatment through the control system.

This reduces manual handling during re-plating operations.

Suitable Applications

● Job-shop plating facilities

● Hardware electroplating plants

● Automotive component manufacturers

● Multi-product plating factories

● Facilities with frequent product changes

Typical Process Flow

The lifting mechanism follows the programmed sequence of lifting, transferring, lowering, processing, and transferring between tanks according to process requirements.

Technical Parameters

Coating Thickness

Operating Temperature

Current Density

Applications

The nickel-nickel-chrome plating line is widely used for:

Automotive Parts

● Grilles

● Emblems

● Door Handles

● Decorative Trim

Sanitary Ware

● Faucets

● Shower Components

● Bathroom Accessories

Hardware Products

● Locks

● Hinges

● Handles

● Decorative Hardware

Consumer Products

● Appliance Panels

● Decorative Components

● Plastic Decorative Parts

Motorcycle Components

● Handlebars

● Trim Parts

● Decorative Accessories

Manufacturing Capabilities

Taizhou Junda Intelligent Equipment Co., Ltd. manufactures:

● Vertical Lift Electroplating Lines

● Gantry Rack Plating Lines

● Gantry Barrel Plating Lines

● Anodizing Production Lines

● Powder Coating Lines

● E-Coating Systems

● Wastewater Treatment Systems

● Exhaust Gas Treatment Systems

● RO Water Treatment Equipment

The company provides equipment design, manufacturing, installation, commissioning, operator training, and after-sales service.

Project Reference

Jinmaoyuan (East China) Surface Treatment Circular Economy Industrial Park

Supplied Equipment:

● Barrel Zinc Plating Line

● Rack Zinc Plating Line

● Vertical Nickel-Chrome Plating Line

Project Scope:

● Automatic electroplating production

● Centralized environmental treatment integration

● Large-scale surface treatment operation

Certifications

The company has obtained:

● Zhejiang Province Ecological Environmental Restoration Engineering Capability Evaluation Certificate

● Environmental Protection Equipment Construction Service Qualification Certificate

● ISO 9001 Quality Management System

● CE Compliance Available

Each production line undergoes factory testing before shipment, including:

● Mechanical Inspection

● Electrical Inspection

● Functional Testing

● Trial Operation Verification

Why Choose JUNDA

● Manufacturer of electroplating and surface treatment equipment

● Custom production line design based on product and capacity requirements

● Support for multiple electroplating and coating processes

● Flexible process control for multi-product production

● Equipment installation and commissioning service

● Spare parts supply and technical support

● 12-month equipment warranty

● Lifetime technical support

Frequently Asked Questions

Can different products run on the same plating line?

Yes. Different process routes and treatment times can be configured within the same production system.

Can operators create new process programs?

Yes. New process recipes can be generated through process tables without requiring PLC program redevelopment.

Is trivalent chrome supported?

Yes. Both trivalent chrome and hexavalent chrome plating processes can be configured.

Can the Nickel-Chrome Vertical Lift Plating Line be customized?

Yes. Tank size, line layout, hoist capacity, production output, filtration systems, and environmental protection systems can all be customized according to project requirements.
