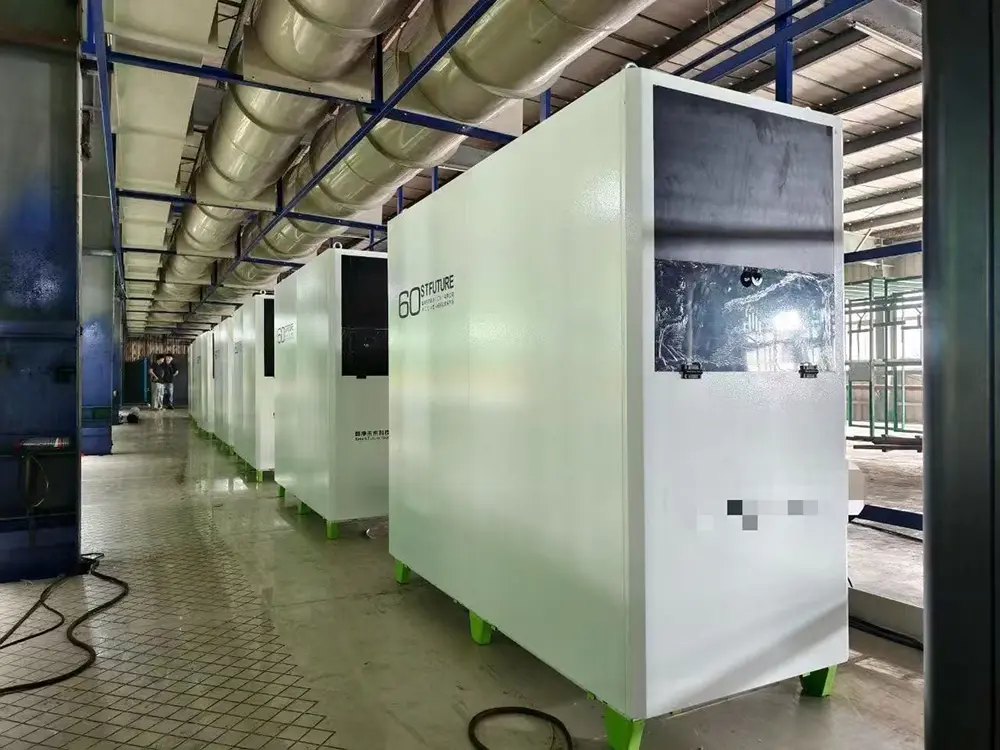

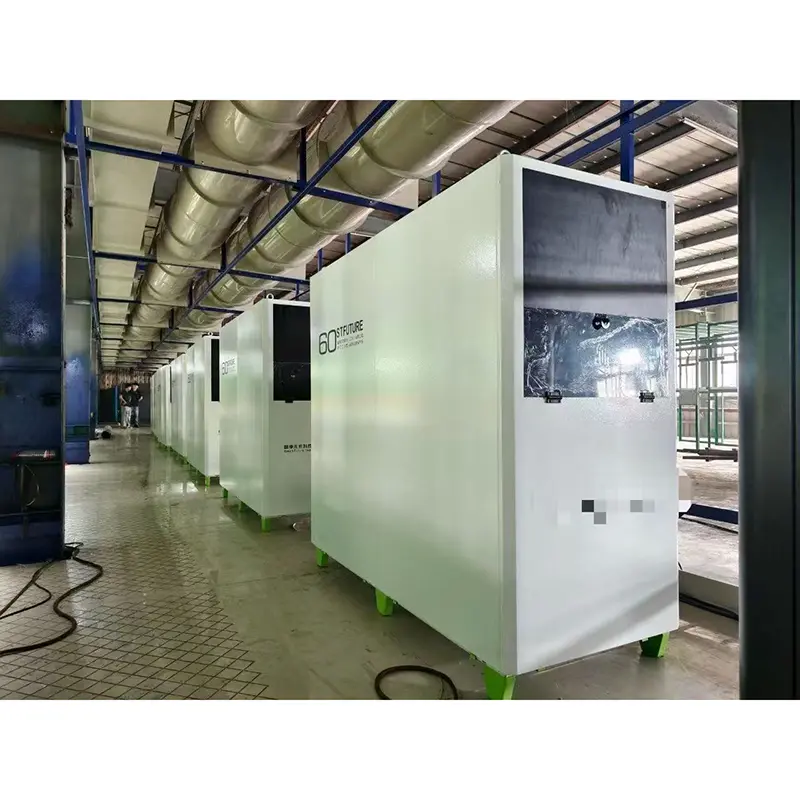

Smart Electroplating Filter

A Smart Electroplating Filter is an AI-controlled membrane filtration system designed to maintain continuous cleanliness of electroplating baths without consumable cartridges or production shutdown.

Unlike traditional filtration systems, it combines:

● High-precision membrane filtration (0.1–10μm absolute)

● Real-time IoT monitoring

● Automatic backwash self-cleaning technology

● PLC + AI predictive control system

It ensures stable plating quality, lower operating cost, and fully automated operation for modern electroplating production lines.

How Smart Filtration Works

The intelligent electroplating filter system operates through two distinct modes:

Mode A: Smart Filtration Mode

During normal operation, plating solution is continuously circulated through high-precision membrane modules (pore size 0.1-10μm absolute vs. 5-100μm nominal for conventional filters). Smart sensors monitor pressure, flow rate, and turbidity in real-time:

Mode B: Automatic Self-Cleaning Mode

When the differential pressure reaches a preset threshold (or time interval), the automated self-cleaning filter activates the backwash cycle:

The cleaning cycle is triggered automatically — no manual intervention required

The filter reverses flow direction through the membrane modules

Accumulated particles are flushed from the membrane surface

Contaminants are discharged through the drain valve (15-30 seconds total)

Filtration resumes immediately — no system shutdown

The self-cleaning filter for electroplating ensures continuous filtration without consumable cartridges. The membrane elements remain effective for 5-10 years under normal operation.

Key Specifications

The industrial smart filter reduces energy consumption by up to 80% compared to conventional systems while eliminating filter cartridge costs.

Key Advantages

✅ Zero Consumable Cost – Filter media lasts 5-10 years with no cartridge replacements. Annual consumable savings: $1,200-1,800 USD per filter.

✅ High-Precision Filtration – 0.1μm absolute precision vs. 5-100μm for conventional filters. Removes particles, oil droplets, suspended solids, and organic decomposition products that cause plating defects.

✅ Fully Automatic Operation – PLC-controlled with AI algorithms that learn optimal cleaning cycles. Self-cleaning cycle runs automatically — no operator intervention required.

✅ No Production Downtime – The automatic backwash occurs while filtration continues. No system shutdown means continuous production.

✅ Real-Time Monitoring – Built-in sensors track pressure, flow, and turbidity. Mobile APP enables remote monitoring from anywhere.

✅ Predictive Maintenance – AI algorithms analyze historical data to predict cleaning needs and equipment issues, reducing unexpected downtime.

✅ No Solution Loss – Conventional cartridge changes dump 10-20 gallons of expensive plating solution each time. Our backwash system returns solution to the bath.

✅ Reduced Labor Costs – Eliminate daily filter cleaning and monthly cartridge changes. Save 10+ hours weekly per filter.

✅ Consistent Plating Quality – Stable bath cleanliness improves deposit uniformity and reduces defect rates by 20-30%.

✅ Environmentally Friendly – Eliminates filter cartridge waste (typically 50-100 cartridges/year per filter). Reduces hazardous waste disposal costs.

✅ 12 Months Warranty – Comprehensive after-sales support with lifetime technical assistance.

Independent case studies confirm that the investment payback period for intelligent electroplating filtration systems is typically 6-12 months, with annual operating cost savings of $12,000-14,000 USD per unit.

Applications

Our smart self-cleaning filter is ideal for:

This auto backwash filter is essential for high-volume production lines requiring continuous, uninterrupted filtration.

Why Choose JUNDA?

As a professional manufacturer of electroplating equipment, we provide:

● Direct factory pricing (no middlemen)

● Custom-engineered filtration systems

● Turnkey electroplating line solutions

● CE-certified industrial equipment

● Lifetime technical support

We support full engineering services from design, manufacturing, installation, commissioning to after-sales support.

Call to Action

Upgrade your electroplating process with AI-driven filtration technology.

Contact us for:

● Customized system design

● Process optimization consultation

● Quotation & ROI analysis
