How Does a Gantry Barrel Plating Line Improve Electroplating Efficiency and Quality?

Table of Contents

• 1. Overview of Gantry Barrel Plating Line
• 2. How Does a Gantry Barrel Plating Line Work?
• 3. Key Advantages of Using a Gantry Barrel Plating Line
• 4. Common Electroplating Problems and How This System Solves Them
• 5. Main Components of a Gantry Barrel Plating Line
• 6. Industrial Applications of Gantry Barrel Plating Systems
• 7. Gantry Barrel Plating Line vs Traditional Plating Methods
• 8. Maintenance Tips for Better Performance
• 9. Frequently Asked Questions

1. Overview of Gantry Barrel Plating Line

Electroplating is widely used to improve corrosion resistance, wear resistance, conductivity, and appearance of metal components. However, when manufacturers process thousands of small parts every day, traditional manual plating methods often create problems such as uneven coating thickness, low productivity, high labor dependency, and unstable quality.

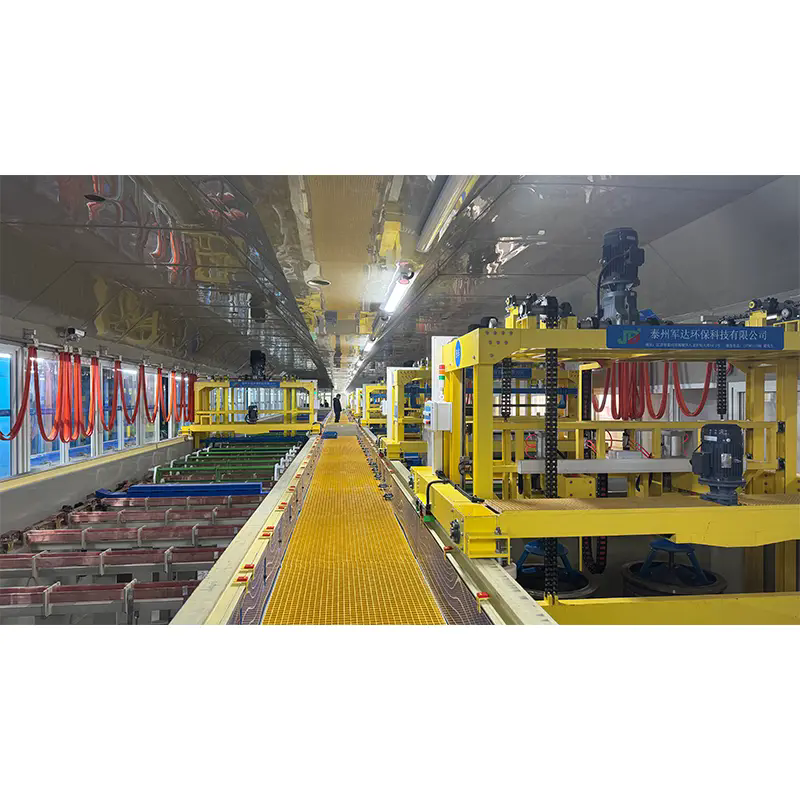

A Gantry Barrel Plating Line is an automated electroplating system designed specifically for bulk plating of small and medium-sized components. The system uses barrel containers to hold parts while they rotate through different chemical treatment and plating processes.

With intelligent movement control and automated operation, the equipment ensures that every batch receives uniform surface treatment. Taizhou Junda Intelligent Equipment Co., Ltd. develops advanced electroplating equipment solutions designed to meet different production requirements across various industries.

2. How Does a Gantry Barrel Plating Line Work?

The operation process of a Gantry Barrel Plating Line involves several carefully controlled stages. The automated gantry system transfers barrels between different processing tanks according to a programmed production sequence.

The general working process includes:

1. Loading: Small metal components are placed into the plating barrel before processing begins.
2. Pre-treatment: Parts go through cleaning, degreasing, and surface activation processes to remove contaminants and improve coating adhesion.
3. Electroplating: The barrel enters the plating tank where electrical current deposits metal ions onto the surface of components.
4. Rinsing: Components are cleaned between processes to prevent chemical contamination.
5. Drying and Unloading: Finished products are dried and removed for inspection and packaging.

The automated gantry movement system reduces manual handling errors and provides accurate positioning, helping manufacturers maintain stable production quality.

3. Key Advantages of Using a Gantry Barrel Plating Line

Choosing the right plating equipment directly affects production efficiency and product quality. A Gantry Barrel Plating Line offers several important benefits:

These advantages make automated barrel plating systems suitable for manufacturers seeking higher productivity without sacrificing coating performance.

4. Common Electroplating Problems and How This System Solves Them

Many manufacturers encounter difficulties during electroplating production. Understanding these challenges helps companies select more suitable equipment.

• Problem: Uneven Coating Thickness
  Manual operation may cause inconsistent processing time. Automated barrel rotation and controlled movement help improve coating uniformity.
• Problem: Low Production Efficiency
  Traditional systems often require frequent manual transfers. A gantry system automatically moves barrels between stations, reducing downtime.
• Problem: High Operating Costs
  Automation reduces labor requirements and improves chemical utilization efficiency.
• Problem: Quality Fluctuation
  Programmable control systems maintain consistent processing parameters for every batch.

5. Main Components of a Gantry Barrel Plating Line

A complete Gantry Barrel Plating Line consists of multiple integrated systems working together.

• Gantry Transport System: Provides automatic barrel movement between different tanks.
• Plating Tanks: Hold chemical solutions required for different surface treatment processes.
• Barrel System: Rotates components during plating to achieve better contact and coating results.
• Control System: Manages operation sequences, timing, and production parameters.
• Filtration and Circulation System: Helps maintain solution quality during continuous operation.

Each component plays an important role in achieving stable and efficient electroplating performance.

6. Industrial Applications of Gantry Barrel Plating Systems

Gantry Barrel Plating Lines are widely used in industries requiring large-scale surface finishing of small metal products.

• Automotive components
• Electronic hardware
• Fasteners and screws
• Precision mechanical parts
• Electrical connectors
• Hardware accessories

These industries rely on automated plating equipment because product appearance, corrosion resistance, and dimensional accuracy are critical factors.

7. Gantry Barrel Plating Line vs Traditional Plating Methods

8. Maintenance Tips for Better Performance

Proper maintenance ensures long-term reliability and stable plating results.

1. Regularly inspect electrical connections and mechanical components.
2. Maintain plating solution concentration according to production requirements.
3. Clean barrels and tanks to prevent contamination.
4. Check automation systems and sensors periodically.
5. Replace worn parts promptly to avoid production interruptions.

A well-maintained Gantry Barrel Plating Line can provide continuous operation and reduce unexpected downtime.

9. Frequently Asked Questions

Q1: What products can be processed by a Gantry Barrel Plating Line?

A: It is mainly designed for small and medium-sized metal components such as fasteners, hardware parts, and electronic components.

Q2: Why choose an automated barrel plating system?

A: Automation improves production efficiency, reduces labor requirements, and helps maintain consistent plating quality.

Q3: How can manufacturers improve plating accuracy?

A: Using precise control systems, stable chemical management, and reliable equipment design can significantly improve plating results.

Q4: Does Taizhou Junda Intelligent Equipment Co., Ltd. provide customized solutions?

A: Yes. Taizhou Junda Intelligent Equipment Co., Ltd. provides professional electroplating equipment solutions designed according to different production processes and customer requirements.

Conclusion

A Gantry Barrel Plating Line is an effective solution for manufacturers looking to improve electroplating efficiency, reduce operating costs, and achieve stable surface finishing quality. Through automated transportation, precise process control, and reliable performance, this equipment helps businesses meet modern production demands.

Taizhou Junda Intelligent Equipment Co., Ltd. focuses on developing advanced electroplating systems that support efficient and dependable manufacturing processes. If you are looking for a customized plating solution to improve your production performance, please contact us for professional assistance and complete technical support.
