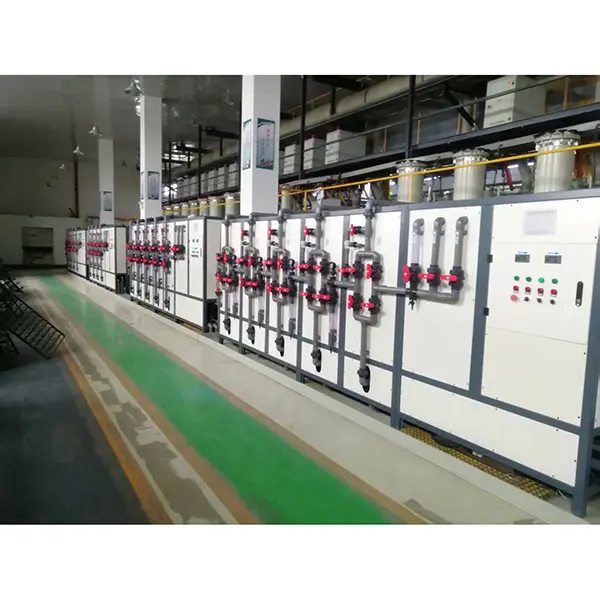

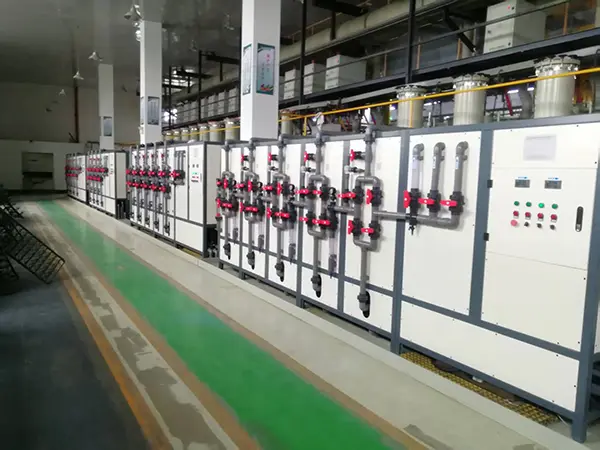

Electroplating Rinse Water Recycling System

An electroplating rinse water recycling system is a closed-loop industrial water treatment solution that uses advanced membrane filtration technology (UF + RO) to recover and reuse rinse water from plating production lines.

Electroplating production lines generate large volumes of rinse water containing heavy metals such as nickel, chromium, copper, and zinc. This wastewater cannot be directly discharged and must be treated before disposal.

For most electroplating facilities, wastewater management has become one of the highest operating costs due to:

Increasing wastewater discharge fees

Expensive chemical treatment consumption

Hazardous sludge disposal costs

Strict environmental compliance regulations (EPA / EU / local standards)

In many plants, thousands of liters of rinse water are discharged every day, resulting in both financial loss and environmental pressure.

Electroplating rinse water recycling is now a key requirement for cost reduction and sustainable manufacturing.

Key Specifications

The system is available as a skid-mounted modular unit for easy installation and expansion, or as a fully integrated turnkey wastewater recycling plant with chemical dosing and sludge dewatering.

JUNDA Closed-Loop Water Recovery Technology

Our system uses a multi-stage purification process designed specifically for electroplating environments.

Multi-Stage Treatment Process

1. Collection & Equalization Tank Balances flow rate and chemical concentration from multiple rinse tanks.

2. Pre-Filtration System Removes suspended solids and protects downstream membranes.

3. Ultrafiltration (UF) System Removes fine particles and organic impurities before RO treatment.

4. Reverse Osmosis (RO) Membrane System Core separation process that removes dissolved heavy metals and contaminants.

Recovery efficiency up to 95%

5. Permeate Water Storage Tank Stores purified water for reuse in rinsing processes.

6. Concentrate Recovery Loop Concentrated solution containing metals can be returned to process baths or further treated.

Technical Process Flow

Our closed-loop water recovery system follows a proven treatment sequence:

The reverse osmosis rinse water recovery process typically achieves 85-95% water recovery, with the remaining concentrate (5-15%) containing concentrated plating chemicals. Depending on application, this concentrate can be returned to process baths, further concentrated via evaporator, or treated in an existing wastewater system.

Key Advantages of JUNDA System

Water Saving (Up to 95%)

Reduces fresh water consumption and sewage discharge costs significantly.

Chemical Recovery

Concentrated plating chemicals such as nickel, copper, and chromium can be partially recovered and reused.

Zero Liquid Discharge (ZLD Ready)

Can be configured into a full ZLD system with evaporator integration.

Sludge Reduction

Reduces hazardous sludge generation compared to conventional chemical treatment systems.

Fully Automatic PLC Control

Real-time monitoring, remote operation, and data logging available.

Fast ROI (12–24 Months)

Savings from water, chemical, and waste treatment costs enable rapid payback.

Applications

Our rinse water recycle system is ideal for:

Electroplating Shops – Zinc, nickel, copper, chromium, and tin plating lines

Anodizing Facilities – Rinse water from anodizing operations

PCB Manufacturers – Rinse water from circuit board plating

Metal Finishing Job Shops – Mixed metal finishing waste streams

Automotive Parts Plating – High-volume rinse water recycling

Aerospace Finishing – Rinse water from aerospace component plating

Integration With Electroplating Production Lines

Unlike standalone water treatment suppliers, JUNDA provides fully integrated system solutions.

Our rinse water recycling system can be directly integrated with:

● Automatic electroplating production lines

● Gantry crane / hoist transport systems

● PLC-based process control systems

● Anodizing and surface treatment lines

● Chemical dosing and filtration systems

This ensures synchronized operation between production and wastewater recovery systems.

Why Choose JUNDA？

As a direct manufacturer with over 20 years of experience in electroplating equipment, we understand both plating chemistry and water treatment technology. This dual expertise ensures our closed loop rinse water recovery systems are optimized for real-world plating operations:

✅ Factory-Direct Pricing – No middleman markup
✅ Customizable Design – System capacity and configuration tailored to your production
✅ Turnkey Solutions – From process design to installation and operator training
✅ Proven Membrane Technology – High-rejection RO membranes with long service life
✅ CE Certified – Compliant with international safety standards
✅ Technical Support – Ongoing process optimization and troubleshooting assistance

Contact us today for a customized electroplating rinse water recycle system quotation！

Our Advantages:

✅ Direct factory manufacturing (no middlemen)
✅ 20+ years engineering experience in electroplating systems
✅ Turnkey project delivery (design → manufacturing → installation)
✅ Custom-engineered solutions for different production layouts
✅ Strong integration capability (process + automation + environmental systems)
✅ Global technical support and after-sales service

FAQ

What is electroplating rinse water recycling?

It is a process that uses RO membrane systems to recover and reuse rinse water from electroplating production lines.

How much water can be recovered?

Typically 85%–95% of rinse water can be reused.

Can recovered water be reused directly?

Yes, permeate water is suitable for rinsing processes.

Does the system reduce sludge?

Yes, compared to conventional chemical treatment, sludge generation is significantly reduced.

Can this system be integrated with production lines?

Yes, JUNDA systems are designed for full integration with electroplating automation lines.

Contact Us

Looking for a customized electroplating rinse water recycling solution?

Contact JUNDA engineering team for:

Plant design consultation

Capacity calculation

ROI evaluation

Turnkey system proposal
