High-Rail Gantry Barrel Zinc Plating Line

Our High-Rail Gantry Barrel Zinc Plating Line is engineered for maximum production capacity in industrial zinc electroplating applications. The elevated rail design allows for larger barrels and heavier loads (up to 800kg+ per batch), making it the ideal choice for high-volume manufacturing facilities.

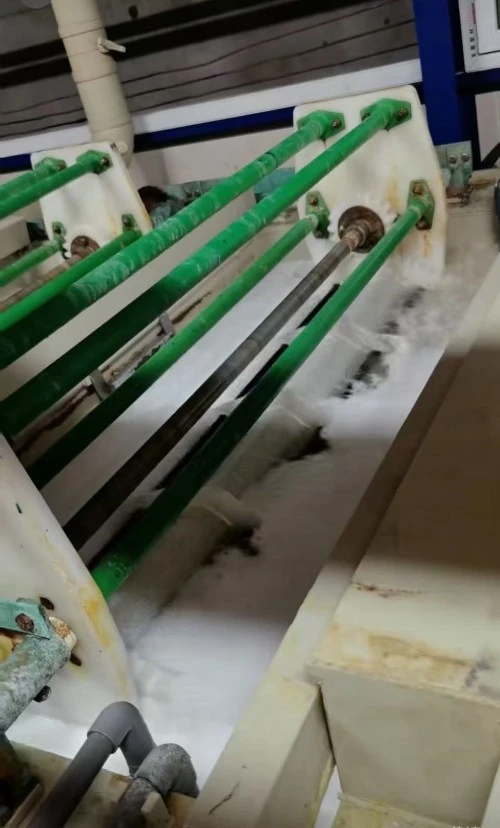

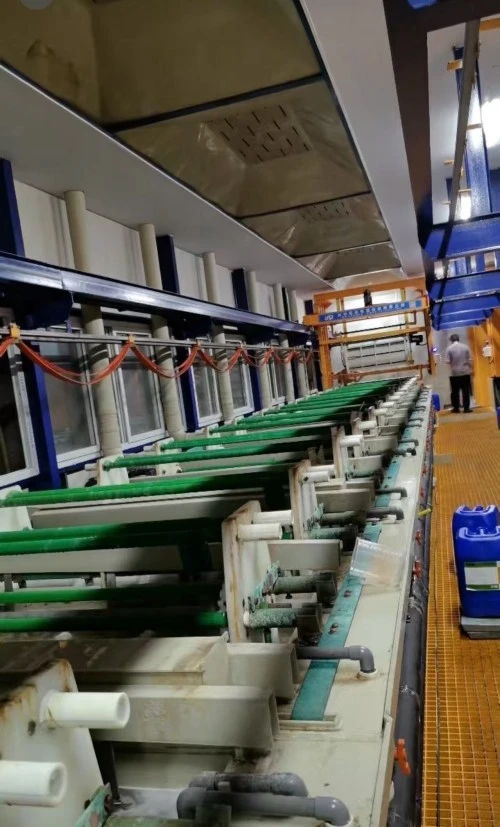

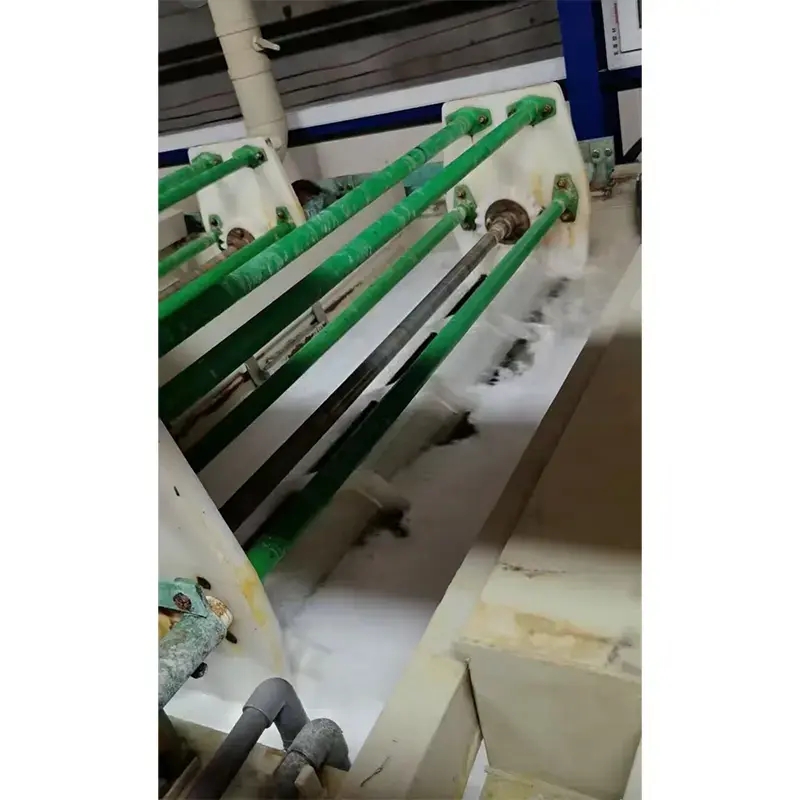

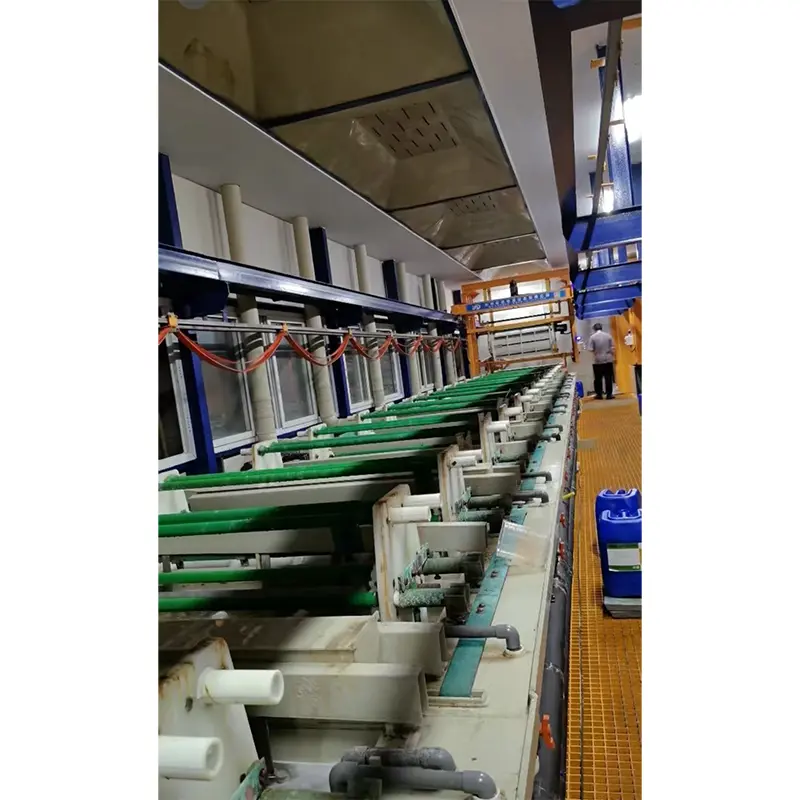

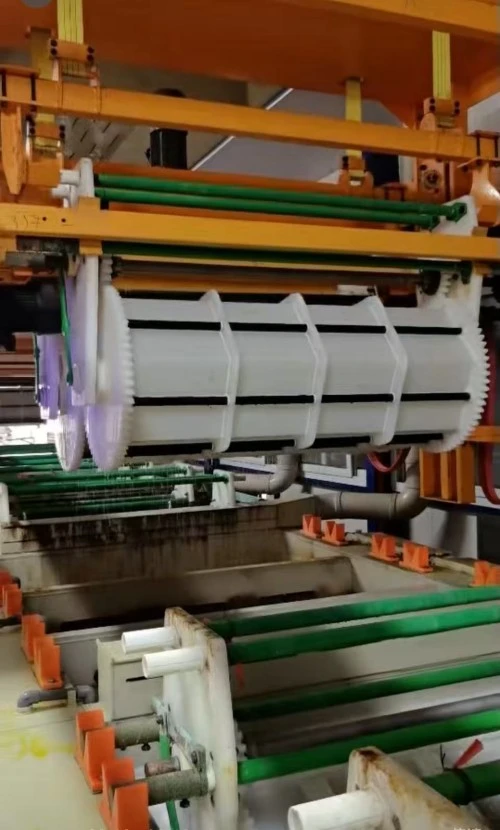

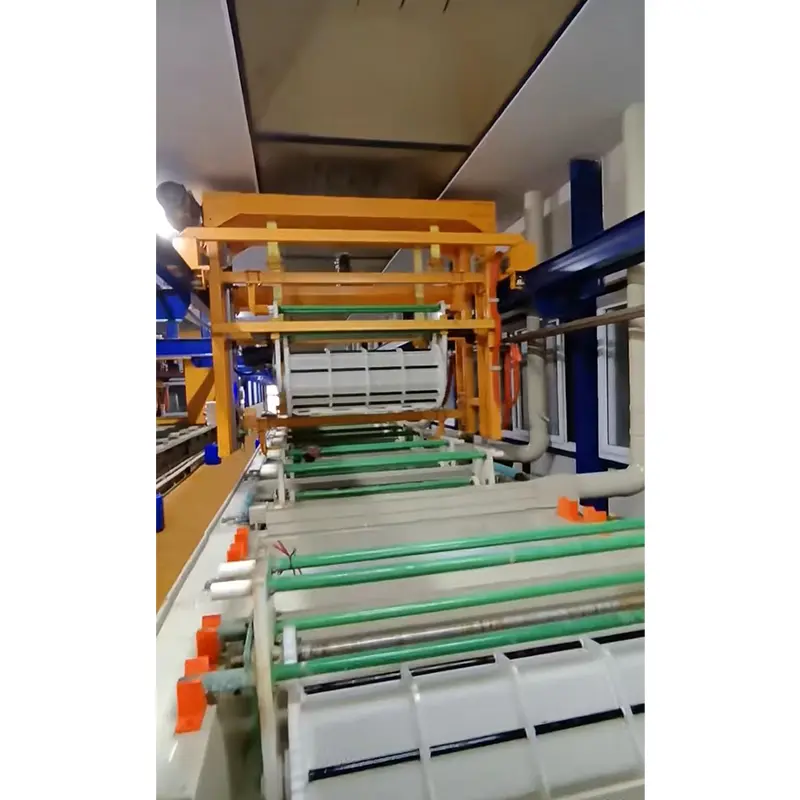

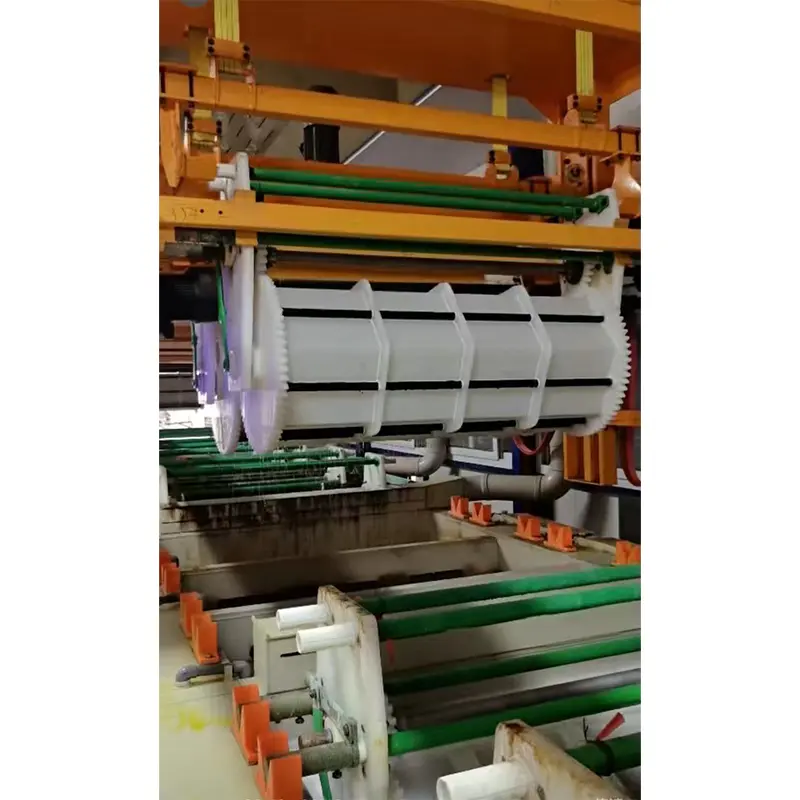

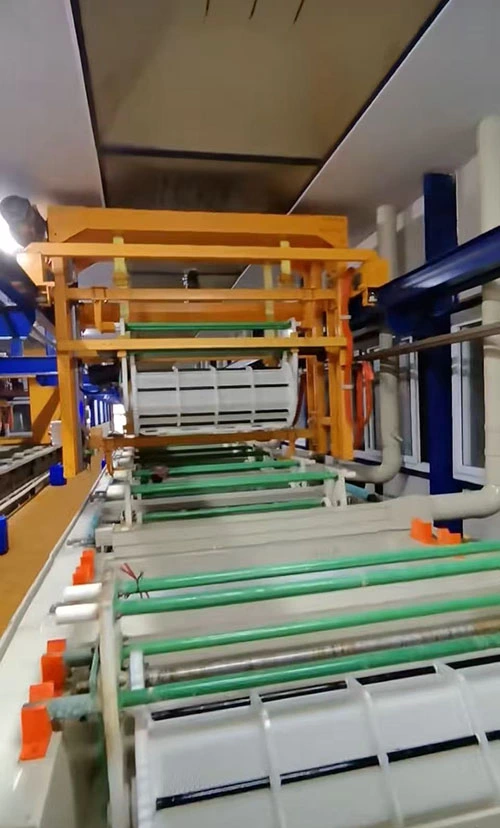

This industrial barrel zinc plating system features a robust gantry hoist with precision positioning, automated barrel rotation, and integrated process control. The high-rail configuration provides ample clearance for larger barrels and facilitates maintenance access.

Key Specifications

Technical Process

1. Automated Barrel Loading – Bulk parts loaded via hopper or conveyor

2. Multi-Stage Pre-Treatment – Degreasing, electrolytic cleaning, pickling

3. Counter-Flow Rinsing – Water-efficient cleaning system

4. Zinc Electroplating – High-efficiency alkaline or acid zinc bath

5. Recovery Rinsing – Drag-out recovery for chemical savings

6. Nitric Acid Dip – Surface brightening

7. Trivalent Chromium Passivation – Blue, yellow, black, or green

8. Centrifugal Drying – High-speed drying for spot-free finish

9. Hydrogen Embrittlement Baking – Integrated ovens for high-strength parts

Key Advantages

✅ Maximum Throughput – Processes 800kg+ of parts per batch – ideal for 24/7 continuous operation

✅ Superior Plating Uniformity – Advanced barrel rotation technology ensures consistent coating on complex geometries including thread roots

✅ Heavy-Duty Construction – Reinforced gantry structure designed for decades of continuous service

✅ Energy Efficient – Optimized rectifiers and heating systems reduce energy consumption by 15-25%

✅ Automated Process Control – PLC with recipe management for different part types

✅ Hydrogen Embrittlement Relief – Integrated baking ovens at 425°F ±20°F

✅ Comprehensive Reporting – Production logs and quality data exportable for ISO compliance

Applications

Automotive fasteners (engine components, chassis hardware)

High-strength bolts and nuts (Grade 8.8, 10.9, 12.9)

Industrial stampings

Agricultural equipment parts

Marine hardware

Defense and aerospace components

Technical Parameters

Why Industrial Manufacturers Choose JUNDA?

With more than 20 years of experience in electroplating equipment manufacturing, JUNDA provides complete turnkey surface treatment solutions for customers worldwide.

Our advantages include:

67,000㎡ manufacturing facility

Professional engineering and design team

Customized production line solutions

CE compliant equipment

Installation and commissioning support

Operator training services

Long-term spare parts supply

From project planning and equipment manufacturing to installation and after-sales support, JUNDA helps customers improve plating quality, production efficiency, and operational reliability.Request your high-capacity barrel zinc plating line quote today！

Frequently Asked Questions

Q1: High-rail vs low-rail gantry – which one is right for my facility?

A: Choose high-rail if you need 800kg+ batch capacity and 24/7 continuous operation, and have ceiling height of 4.0m or higher. Choose low-rail if your facility has ceiling height under 4.0m or you process smaller batches (100-500kg). Both systems use JUNDA's intelligent fuzzy control technology.

Q2: What salt spray resistance can I expect for Zinc-Nickel alloy plating?

A: Our Zn-Ni alloy (12-15% nickel content) achieves 500-1000 hours to white rust, depending on passivation type (trivalent yellow or black) and post-treatment sealing. Contact us for salt spray test reports based on your specific part.

Q3: What is your warranty and after-sales support?

A: We provide 12 months warranty on all mechanical and electrical components. Support includes: lifetime remote technical assistance (via Ethernet/RS485), spare parts shipment within 72 hours, and optional on-site service contracts.

Q4: Can the High-Rail Gantry Barrel Zinc Plating Line be integrated with my existing MES/ERP system?

A: Yes. The Siemens/Omron PLC supports Modbus TCP protocol via Ethernet or RS485. Production logs, bath temperature, current density, and quality data can be exported automatically for ISO compliance and traceability.

Q5: How do you prevent hydrogen embrittlement for Grade 12.9 fasteners?

A: Our integrated baking ovens operate at 425°F ±20°F for 8+ hours immediately after plating. Process is validated for Grade 10.9, 12.9, and aerospace-grade high-strength steel components.

Q6: Do you provide turnkey installation and operator training?

A: Yes. Every high-rail gantry line includes: on-site installation supervision, commissioning, and 3-5 days operator training at your facility. We also provide detailed process manuals and PLC troubleshooting guides.

Q7: What is the minimum order lead time?

A: Standard lead time is 90-120 days from deposit to factory acceptance test (FAT). Rush orders may be available for standard configurations.
