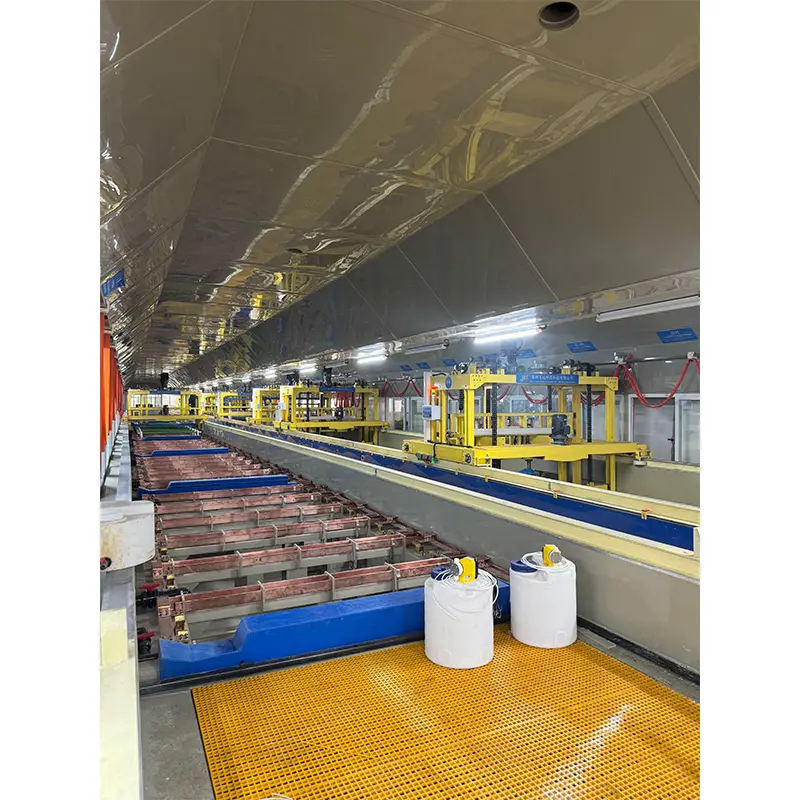

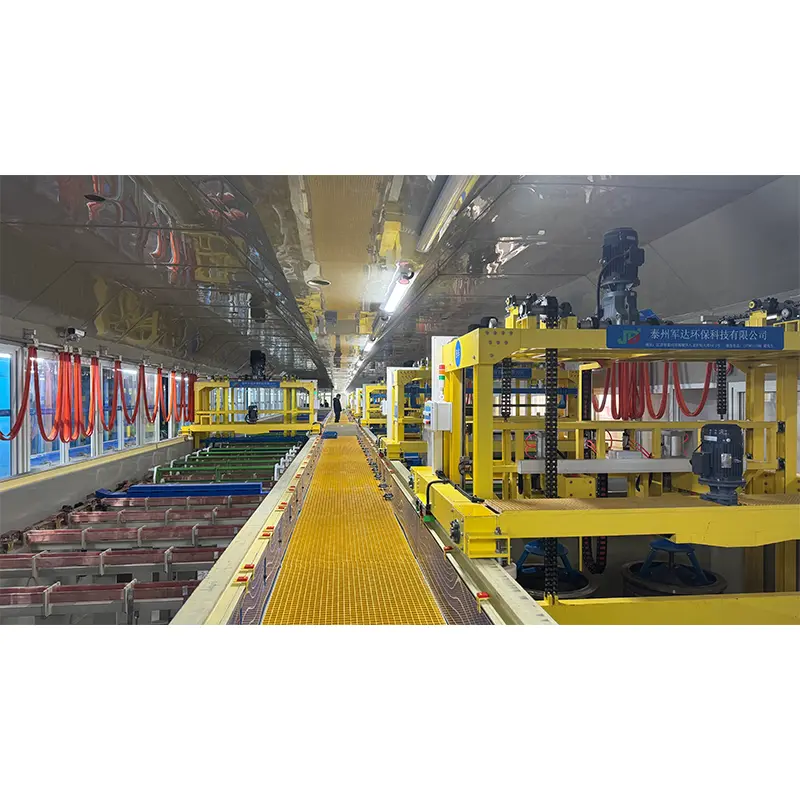

Low-Rail Gantry Barrel Zinc Plating Line

Our Low-Rail Gantry Barrel Zinc Plating Line is specifically designed for high-volume zinc electroplating of small metal parts. The low-rail gantry structure provides exceptional stability and reduces the overall height requirement, making it ideal for facilities with limited ceiling clearance.

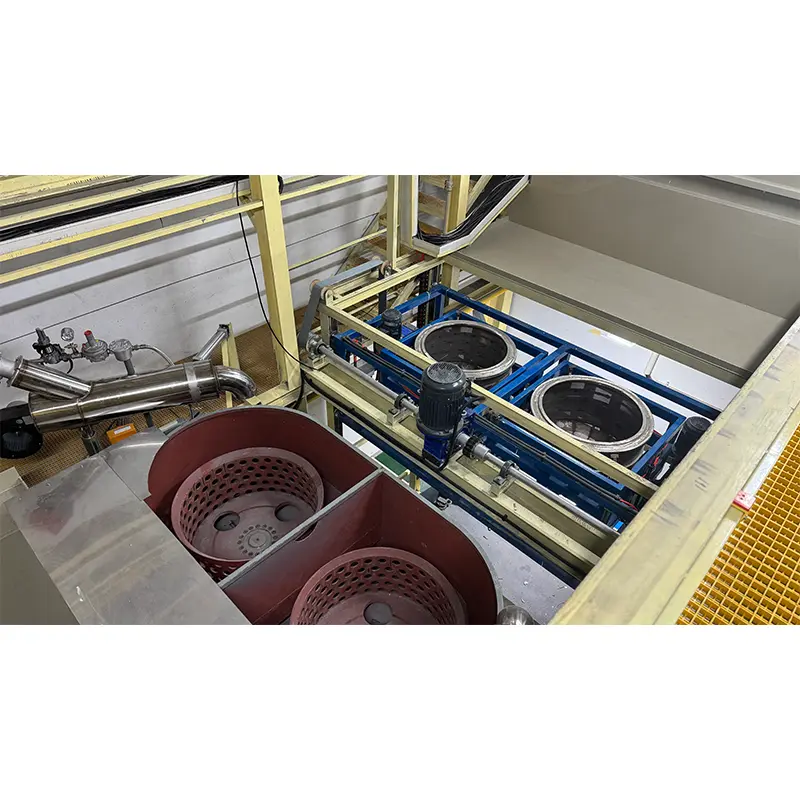

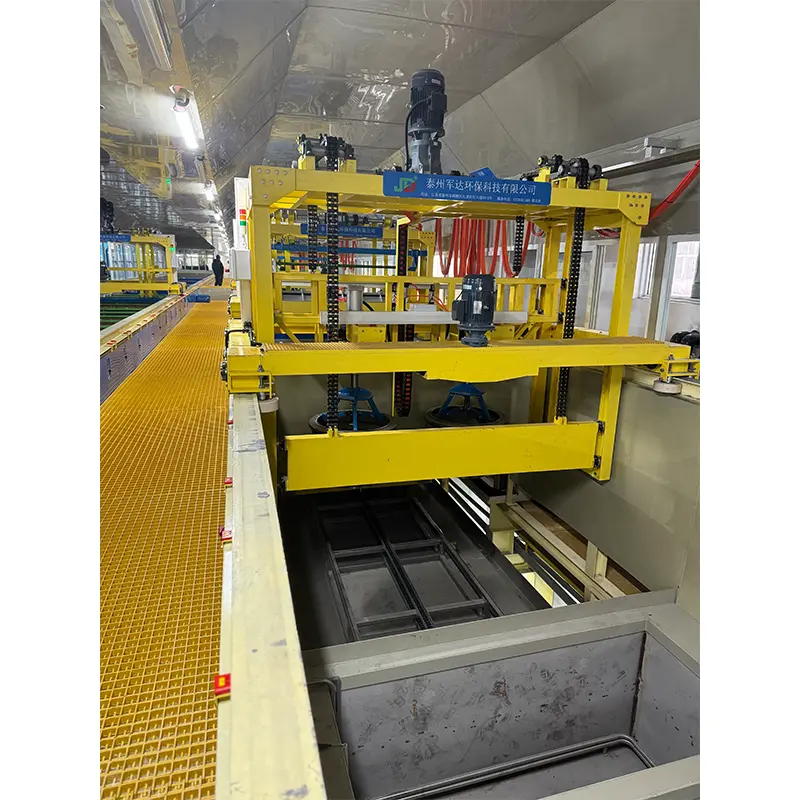

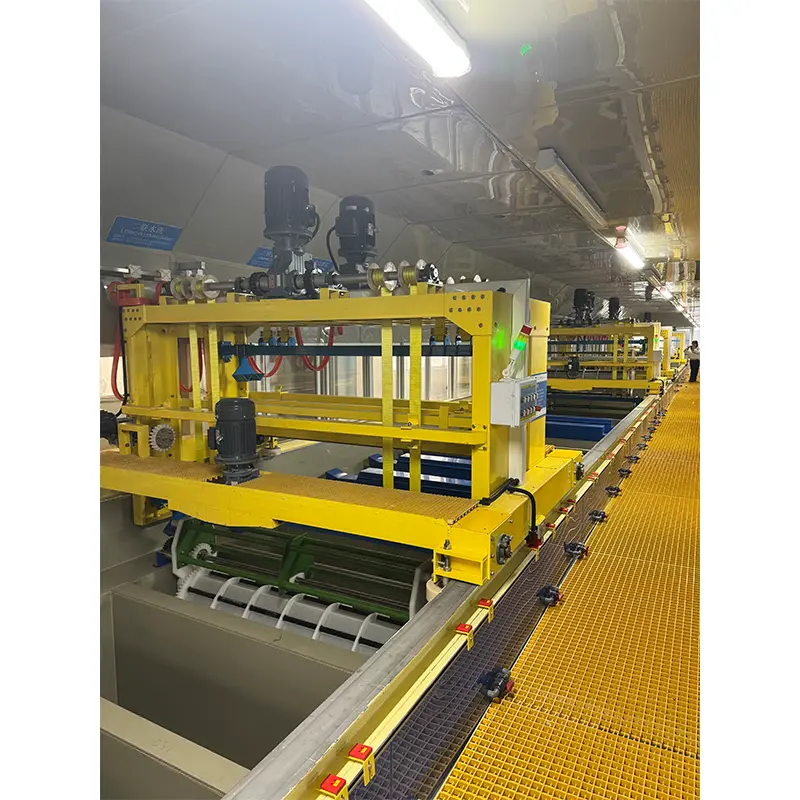

This equipment utilizes rotating barrels to process parts in bulk, ensuring uniform zinc deposits on all surfaces – including threads, recesses, and blind holes. The low-rail design allows for smooth horizontal movement of the gantry hoist, minimizing vibration and improving positioning accuracy.

Keywords: barrel zinc plating line, low-rail gantry plating equipment, zinc barrel plating machine, bulk zinc electroplating, automated barrel plating system

Key Specifications

Supported Surface Finishing Processes

The Low-Rail Gantry Barrel Zinc Plating Line can support:

● Alkaline Zinc Plating

● Acid Zinc Plating

● Zinc-Nickel Plating

● Copper Plating

● Nickel Plating

● Trivalent Passivation

● Black Zinc Coating

● Blue Zinc Coating

● Yellow Zinc Coating

Intelligent Fuzzy Control Technology

Unlike conventional plating lines that require engineers to rewrite control programs whenever process routes change, JUNDA's intelligent fuzzy control system automatically generates equipment movement logic based on process sheets.

Key Benefits

✔ Mixed production of multiple products simultaneously

✔ Automatic generation of new process programs

✔ Flexible adjustment of immersion and dripping times

✔ Automatic return for re-plating after inspection

✔ Reduced dependence on PLC programming engineers

✔ Higher equipment utilization

Industries We Serve

Fastener Industry

For:

● Screws

● Nuts

● Bolts

● Washers

Automotive Components

For:

● Brake parts

● Chassis components

● Connectors

Electrical Hardware

For:

● Electrical terminals

● Conductive connectors

Agricultural Machinery Parts

For corrosion-resistant zinc coating applications.

Key Advantages

✅ High Production Efficiency – Processes 500kg+ of small parts per batch, significantly reducing labor costs

✅ Uniform Zinc Coating – Barrel rotation mechanism ensures consistent thickness on threads, recesses, and complex geometries

✅ Low-Rail Design – Requires less ceiling height than standard gantry systems – ideal for retrofit projects

✅ Automated Operation – PLC-controlled with HMI touch screen for easy parameter adjustment and recipe storage

✅ Hydrogen Embrittlement Relief – Integrated baking ovens for high-strength steel components

✅ Trivalent Chromium Passivation – Environmentally friendly blue, yellow, or black finish

✅ 12 Months Warranty – Comprehensive after-sales support

Technical Parameters

Why JUNDA Has Become A Trusted Electroplating Line Manufacturer

20+ Years Surface Finishing Experience

● Automated electroplating lines

● Anodizing systems

● Powder coating lines

Successfully Delivered Projects

● Jinmaoyuan Surface Treatment Industrial Park

● Zhejiang Zhien Environmental Protection Industrial Park

● Baida Precision Manufacturing

● Taizhou Zhenye Electroplating

Complete Engineering Services

● Process design

● Equipment manufacturing

● Installation

● Commissioning

● Operator training

Certifications & Compliance

Taizhou Junda Intelligent Equipment Co., Ltd. places strong emphasis on environmental responsibility, engineering quality, and compliance with industrial surface treatment standards. Our manufacturing and engineering capabilities are supported by officially recognized certifications in environmental protection and industrial equipment construction.

Certified Qualifications

Zhejiang Province Ecological and Environmental Restoration Engineering Implementation Capability Evaluation Certificate

Environmental Protection Equipment Construction Service Enterprise Qualification Certificate

Frequently Asked Questions

Can different products be processed simultaneously?

Yes. The system supports mixed production of multiple product types with different process routes.

Can process parameters be adjusted during production?

Yes. Immersion time, plating time, and dripping time can be modified without rewriting PLC programs.

Is this system suitable for fastener production?

Yes. It is specifically optimized for bulk fastener electroplating applications.

Can defective parts be reprocessed automatically?

Yes. The system supports automatic NG return for re-plating cycles.

What is the advantage of the low-rail design?

It reduces installation height requirements and improves mechanical stability.

With advanced process control technology and strong engineering capability, JUNDA helps manufacturers improve productivity, reduce downtime, and achieve stable, high-quality zinc coating performance.

Contact us today for a customized barrel zinc plating solution！
