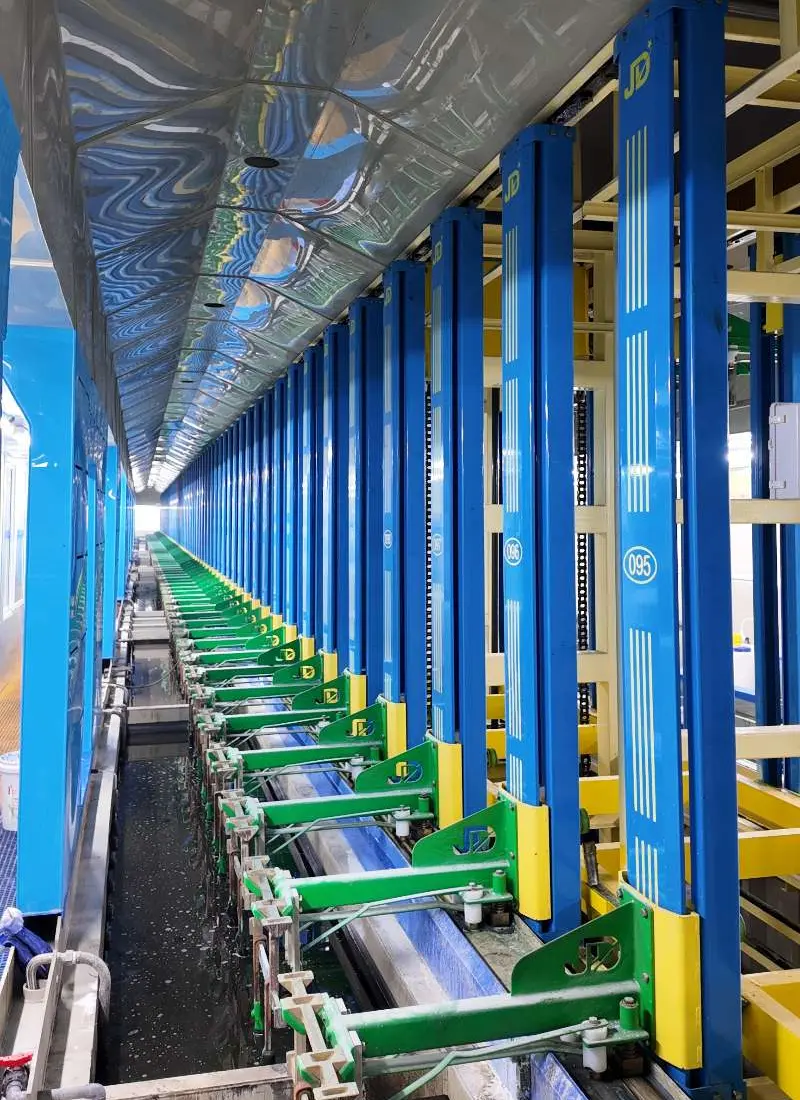

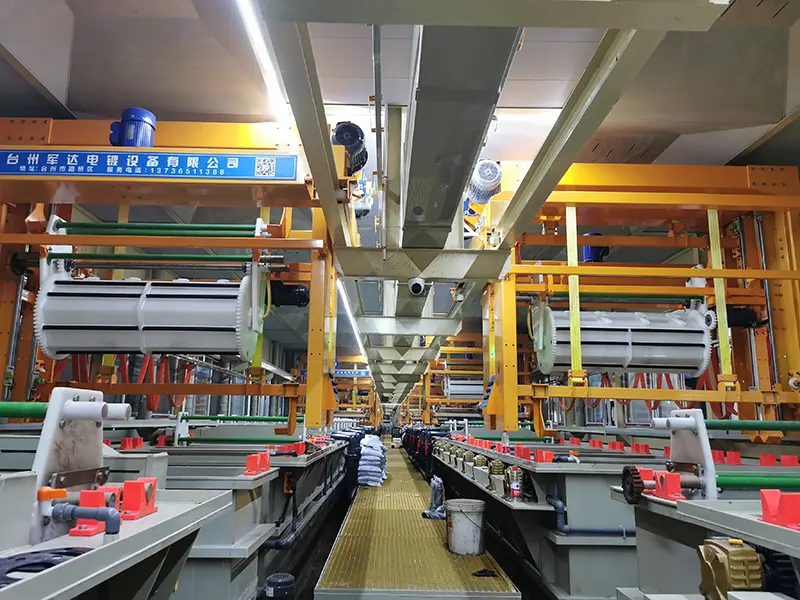

Hard Chrome Plating Line

Our Hard Chrome Plating Line is engineered for applications requiring extreme wear resistance, hardness (800-1000 HV), and low friction coefficient. This equipment is widely used for hydraulic piston rods, industrial rolls, printing cylinders, molds, dies, and heavy machinery components.

The hard chrome plating system features a gantry-type structure with PLC automatic control, precise current regulation, and bath temperature control. Our advanced design incorporates lead-free platinized anodes, eliminating lead contamination and reducing environmental impact.

Key Specifications

Common Challenges in Hard Chrome Plating Production

Manufacturers often face several challenges when operating conventional hard chrome plating processes:

● Uneven coating thickness affecting product quality

● Excessive labor costs caused by manual operation

● Poor current distribution leading to inconsistent hardness

● Environmental concerns related to chrome mist emissions

● Difficult process control for large workpieces

● High maintenance and operating costs

JUNDA Hard Chrome Plating Line is designed to solve these challenges through intelligent automation, precise process control, and integrated environmental protection systems.

Technical Process

1. Solvent Degreasing – Remove heavy oil and grease

2. Ultrasonic Cleaning – Thorough cleaning of complex surfaces

3. Electrolytic Degreasing – Electrochemical deep cleaning

4. Rinsing – Multi-stage cleaning

5. Reverse Etching – Surface activation for adhesion

6. Hard Chrome Plating – Chrome bath, 55-60℃, high current density

7. Chrome Mist Recovery – Exhaust system with mist eliminator

8. Multi-stage Rinsing – Thorough cleaning after plating

9. Hydrogen Embrittlement Relief – Baking for high-strength steel parts

10. Drying & Inspection – Final quality check

Key Advantages of JUNDA Hard Chrome Plating Line

High Hardness Performance

Produces hard chrome coatings with hardness ranging from 800–1000 HV, significantly improving wear resistance and extending component service life.

Excellent Wear Resistance

Suitable for applications requiring continuous friction resistance and surface durability. Hard chrome coatings can increase component lifespan by 3 to 5 times compared to untreated steel surfaces.

Precise Automatic Control

The PLC-controlled system ensures accurate regulation of:

● Current density

● Plating time

● Bath temperature

● Production sequence

This improves coating consistency and production efficiency.

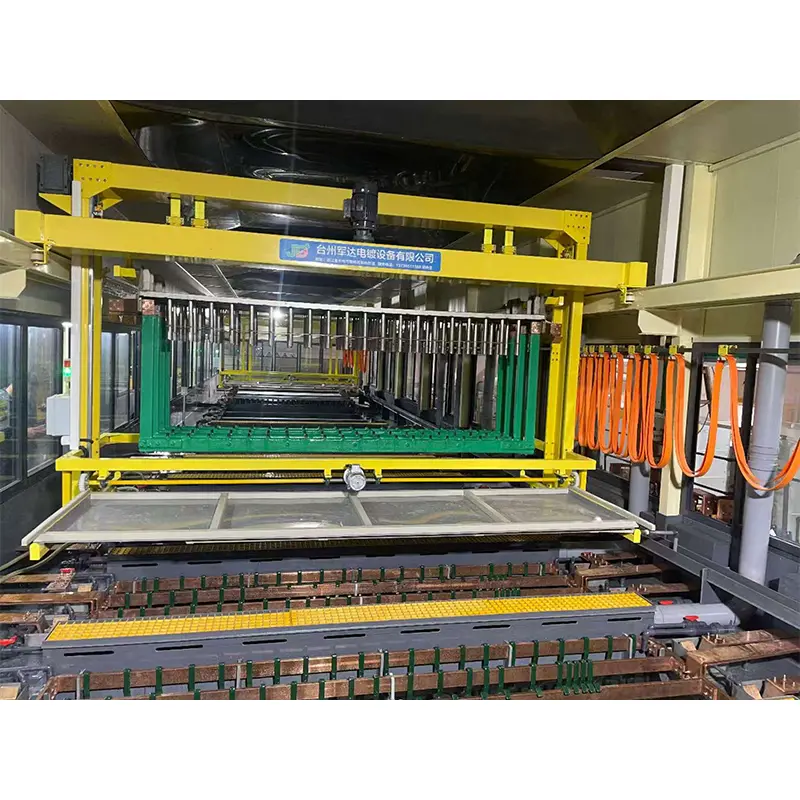

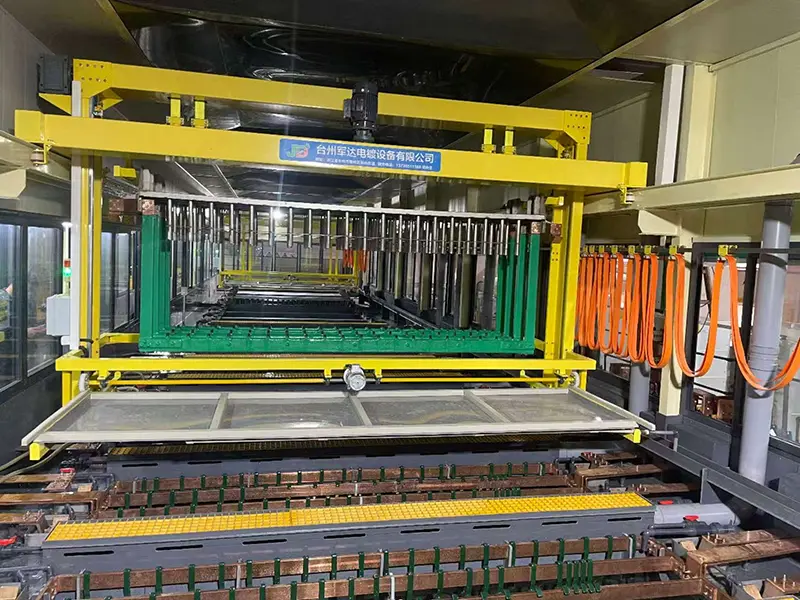

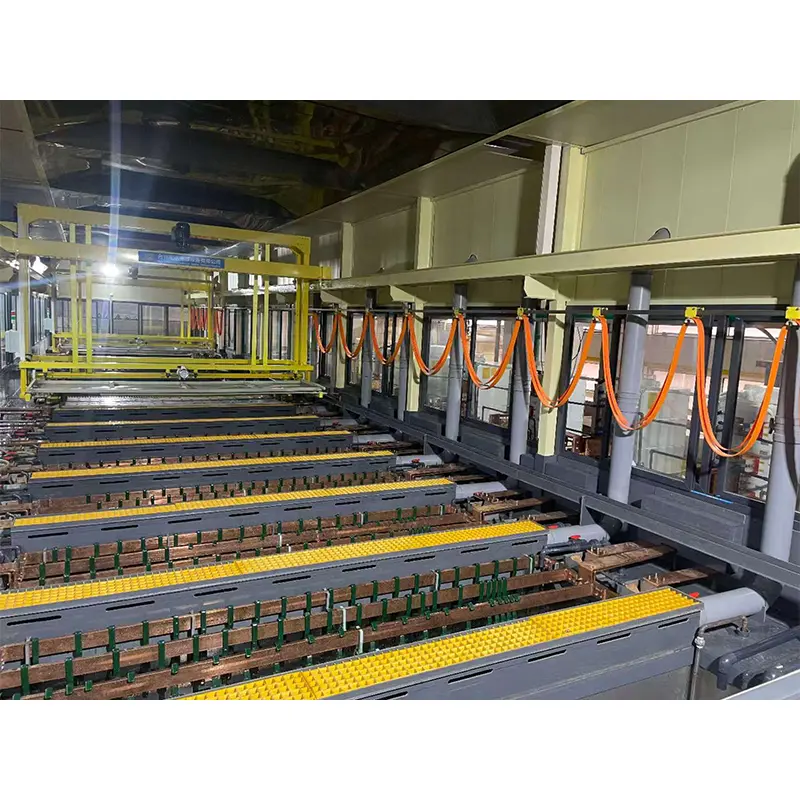

Gantry Automation System

The gantry transfer structure enables stable movement of large workpieces and reduces manual handling requirements.

Environmentally Friendly Design

Optional environmental systems include:

● Chrome mist recovery units

● Exhaust gas purification systems

● Wastewater treatment equipment

● RO pure water systems

Helping customers meet local environmental regulations.

Customized Engineering Solutions

Every production line can be tailored according to:

● Product dimensions

● Production capacity

● Workshop layout

● Plating process requirements

Applications

Hydraulic piston rods and cylinders

Industrial rolls (printing, calendering, embossing)

Molds and dies for plastic and metal forming

Aerospace components

Mining and construction machinery parts

Marine and offshore equipment

Textile machinery components

Technical Parameters

Why Choose JUNDA?

We have extensive experience designing hard chrome plating lines for heavy industry. Our systems are engineered for durability, precision, and environmental compliance. We offer fully automated lines with chrome mist recovery and wastewater treatment integration.

Proven Industry Experience

JUNDA has extensive experience in automated electroplating equipment manufacturing and turnkey surface treatment projects.

Representative projects include:

Jinmaoyuan Surface Treatment Industrial Park

● Barrel Zinc Plating Line

● Rack Zinc Plating Line

● Vertical Nickel-Chrome Plating Line

Zhejiang Zhien Environmental Protection Industrial Park

● Barrel Nickel Plating Line

● Copper-Nickel-Chrome Plating Line

Taizhou Zhenye Electroplating Co., Ltd.

● Hard Chrome Gantry Plating Equipment

Frequently Asked Questions

What is hard chrome plating?

Hard chrome plating is an electroplating process that deposits a thick chromium coating to improve wear resistance, hardness, and corrosion protection.

What hardness can be achieved?

Typical coating hardness ranges from 800 to 1000 HV depending on process conditions.

What industries use hard chrome plating lines?

Hydraulic cylinders, industrial rollers, mining equipment, aerospace components, molds, dies, and marine equipment.

Can the line be fully automated?

Yes. JUNDA provides fully automated PLC-controlled hard chrome plating lines with gantry transfer systems.

Do you provide environmental protection equipment?

Yes. Wastewater treatment systems, chrome mist recovery systems, exhaust purification equipment, and RO water treatment systems can be integrated into the production line.

Can the equipment be customized?

Yes. We provide customized solutions based on product specifications, production capacity, and factory layout.
