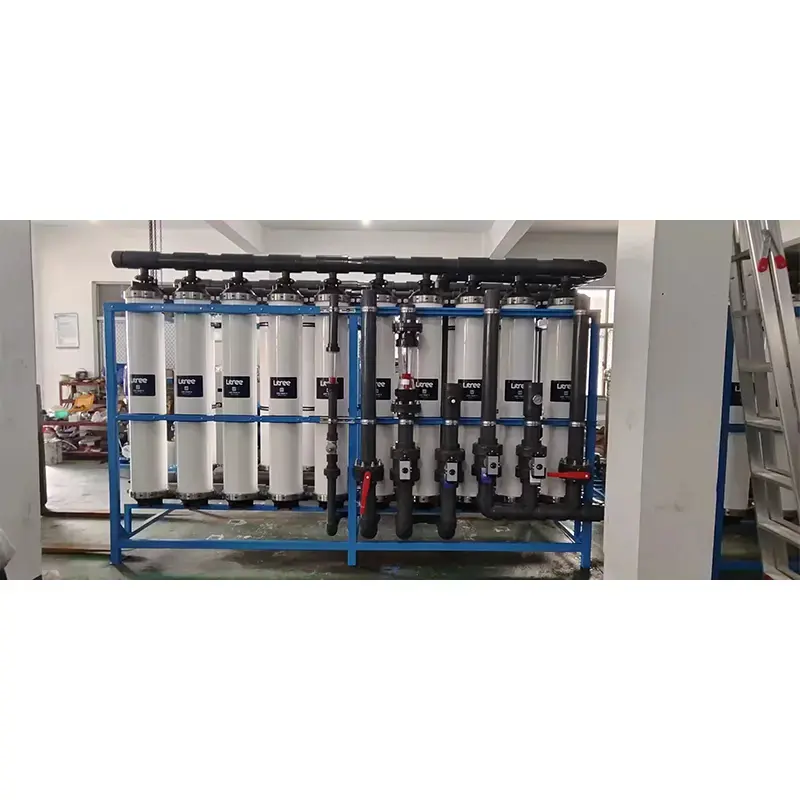

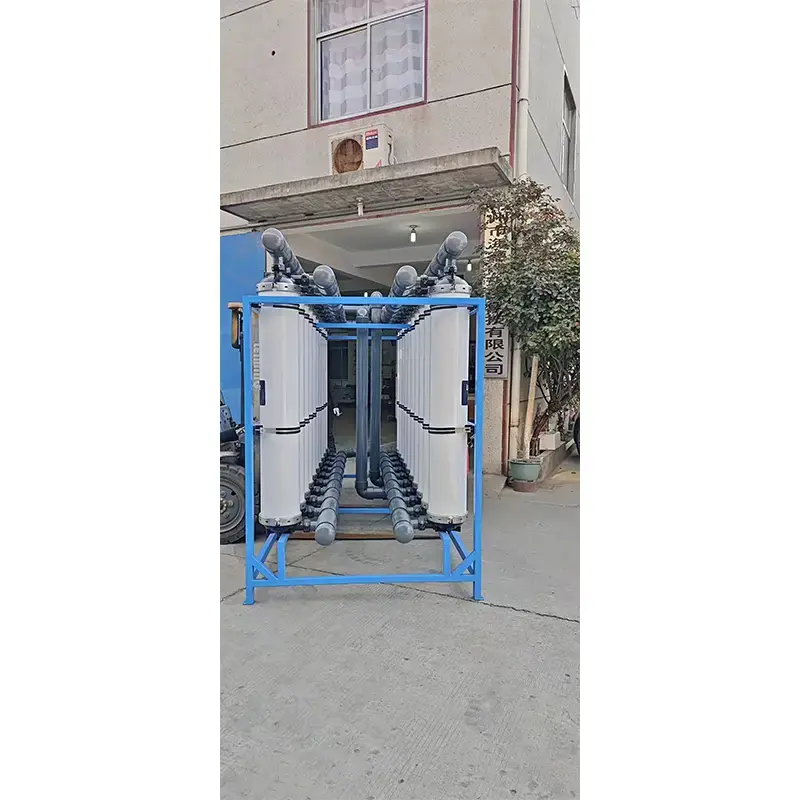

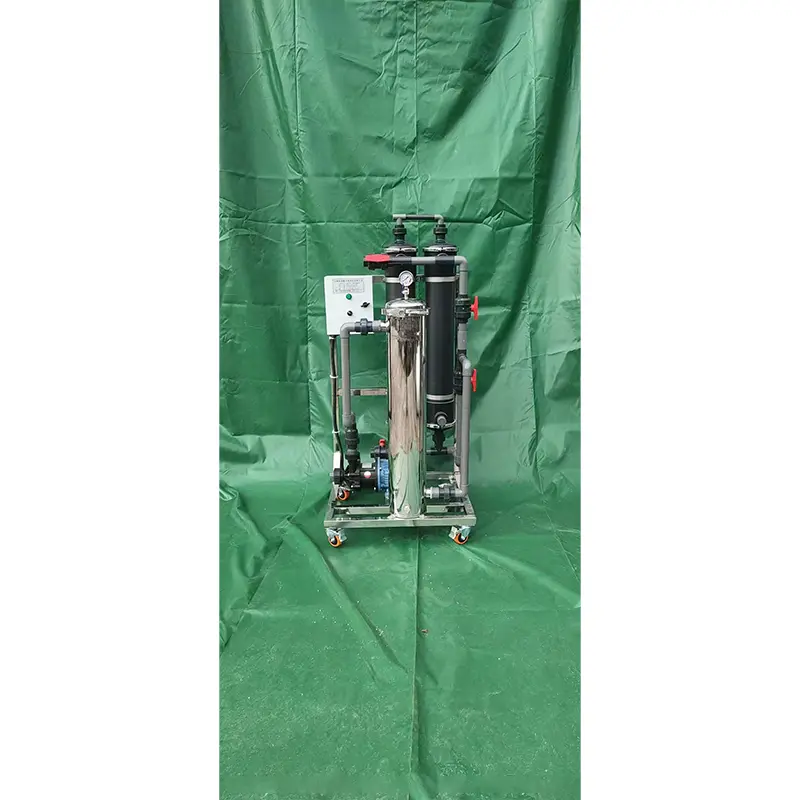

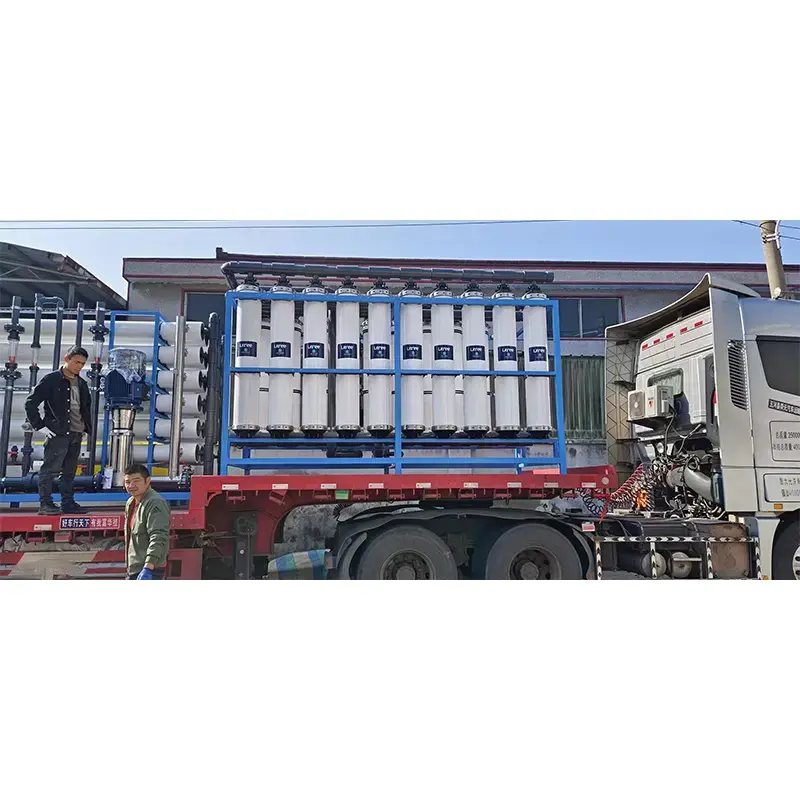

Ultrafiltration System

The JUNDA Ultrafiltration System is specifically designed for electroplating wastewater treatment, rinse water recycling, and reverse osmosis (RO) pretreatment. Utilizing advanced PVDF ultrafiltration membranes, the system effectively removes suspended solids, colloids, metal hydroxides, emulsified oils, bacteria, and other contaminants before wastewater enters the RO system.

By reducing membrane fouling and improving feedwater quality, the UF system significantly extends RO membrane life, lowers operating costs, and increases water recovery efficiency.

Why Ultrafiltration is Essential Before RO

Reverse Osmosis membranes are highly effective for removing dissolved salts and achieving high-purity water. However, they are sensitive to contamination from suspended particles and colloidal materials commonly found in electroplating wastewater.

Without proper pretreatment, RO membranes can experience:

● Frequent fouling

● Increased cleaning cycles

● Reduced water production

● Higher operating costs

● Shortened membrane lifespan

JUNDA UF systems act as a protective barrier, removing particles as small as 0.01 microns and ensuring stable long-term operation of downstream RO systems.

How Ultrafiltration Works

Ultrafiltration is a pressure-driven membrane filtration process that removes suspended solids, colloids, bacteria, and high-molecular-weight organic compounds.

UF Membrane Specifications:

Pore Size: 0.01 – 0.1 microns

Material: PVDF / PES (hydrophilic, chemical-resistant)

Configuration: Hollow fiber (inside-out or outside-in flow)

Contaminants Removed by UF:

Suspended solids and silt

Colloidal silica and metal hydroxides

Bacteria and microorganisms

Emulsified oils

High-molecular-weight organics

TSS (Total Suspended Solids) to <1 mg/L

Contaminants NOT Removed by UF:

Dissolved salts (TDS)

Hardness (calcium, magnesium)

Low-molecular-weight organics

Small ions

This is why UF is typically used as pre-treatment for RO — UF handles the "big" contaminants, and RO handles the dissolved solids.

Key Specifications

Key Features

High-Performance PVDF Membranes

Excellent chemical resistance and mechanical strength for demanding electroplating wastewater environments.

Automatic Backwash System

PLC-controlled automatic cleaning reduces maintenance requirements and improves membrane lifespan.

Air Scouring Technology

Periodic air cleaning minimizes membrane fouling and ensures stable filtration performance.

Chemical Enhanced Backwash

Automated chemical cleaning procedures maintain long-term filtration efficiency.

Modular Design

Flexible system configurations available from small workshops to large industrial wastewater treatment plants.

Energy-Efficient Operation

Low operating pressure significantly reduces energy consumption compared with conventional filtration systems.

Intelligent Automation Advantages

Unlike traditional fixed-program wastewater treatment equipment, JUNDA integrates advanced intelligent control technology into its environmental treatment systems.

Benefits Include

● Flexible process parameter adjustment

● Automatic operating sequence optimization

● Real-time monitoring and alarm functions

● Reduced operator intervention

● Higher system reliability

● Easy integration with RO and ZLD systems

This intelligent control approach improves operational efficiency while reducing maintenance and management costs.

Applications

The JUNDA Ultrafiltration System is widely used in:

Electroplating Wastewater Treatment

● Zinc Plating

● Nickel Plating

● Copper Plating

● Chrome Plating

● Nickel-Chrome Plating

Surface Finishing Industry

● Metal Finishing Plants

● Decorative Coating Facilities

● Hardware Manufacturing

PCB Manufacturing

● Printed Circuit Board Electroplating

● Chemical Copper Processes

Aluminum Processing

● Anodizing Wastewater Recycling

● Hard Anodizing Pretreatment

Industrial Water Reuse

● Rinse Water Recovery

● Process Water Recycling

● Zero Liquid Discharge (ZLD) Projects

Integrated UF + RO Water Recycling Solution

For customers seeking maximum water recovery and environmental compliance, JUNDA provides complete UF + RO integrated systems.

Process Flow

Collection Tank

↓

Wastewater Equalization

↓

Ultrafiltration System (UF)

↓

Reverse Osmosis System (RO)

↓

Pure Water Reuse

↓

Concentrate Treatment / ZLD

Benefits:

✔ Reduced freshwater consumption

✔ Lower wastewater discharge

✔ Extended RO membrane life

✔ Improved environmental compliance

✔ Reduced operating costs

Why Choose JUNDA

Professional Surface Treatment Equipment Manufacturer

Taizhou Junda Intelligent Equipment Co., Ltd. specializes in:

● Automated Electroplating Lines

● Anodizing Equipment

● Wastewater Treatment Systems

● Ultrafiltration Systems

● Reverse Osmosis Systems

● Environmental Protection Equipment

With manufacturing facilities and engineering service teams across multiple regions in China, JUNDA delivers customized turnkey solutions for surface treatment industries worldwide.

Our Advantages

✔ Customized Engineering Solutions

✔ Factory Direct Manufacturing

✔ CE Certified Equipment

✔ Environmental Engineering Expertise

✔ Experienced Technical Team

✔ Global Export Support

✔ Lifetime Technical Assistance

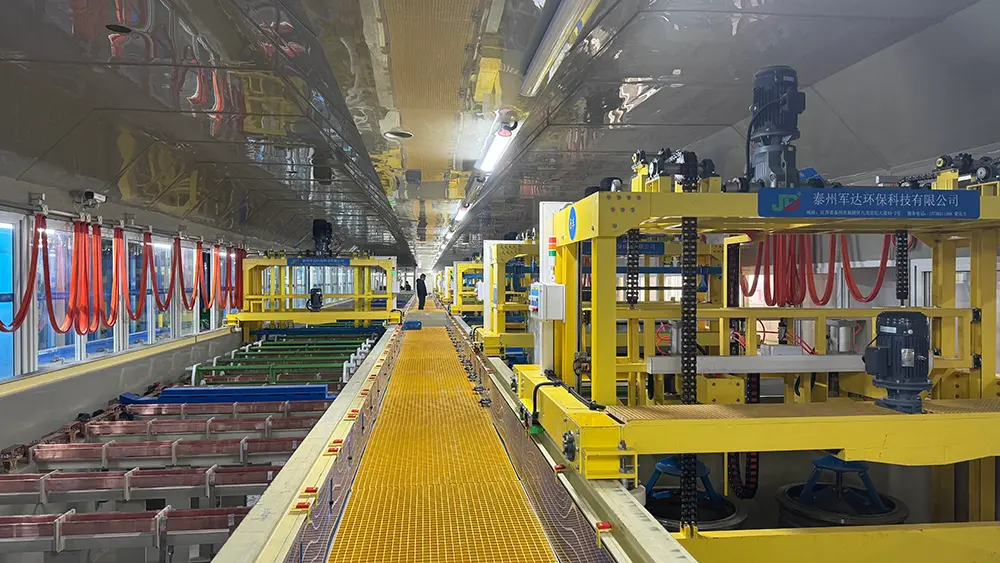

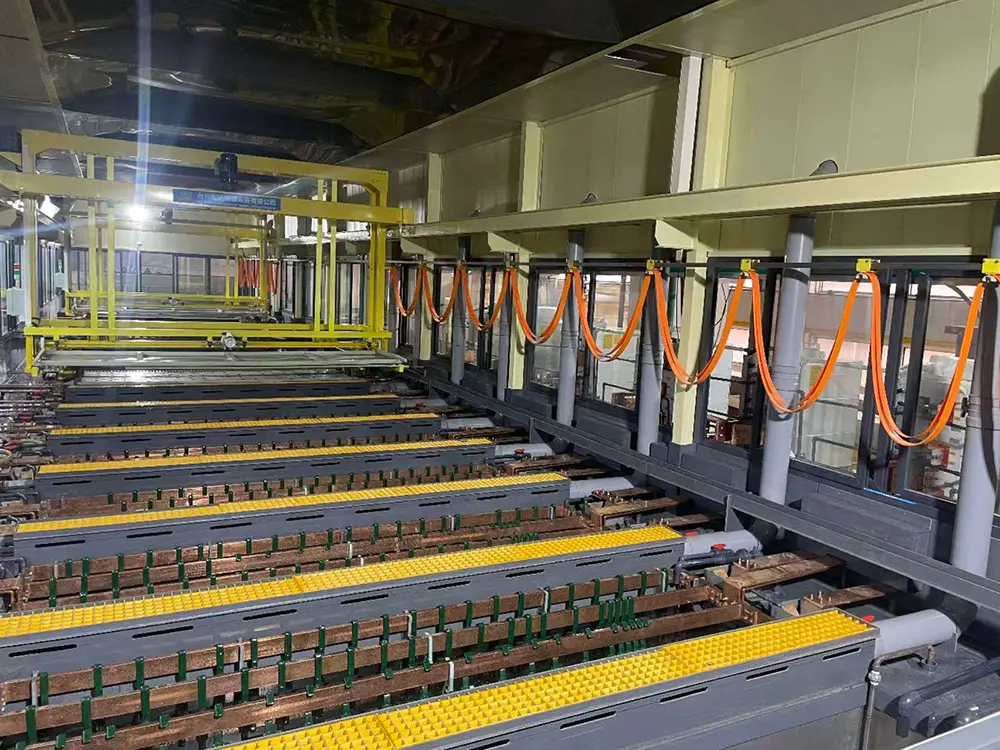

Successful Project References

Jinmaoyuan Surface Treatment Circular Economy Industrial Park

Products Supplied:

● Zinc Barrel Plating Lines

● Zinc Rack Plating Lines

● Vertical Nickel-Chrome Plating Lines

Zhejiang Zhien Environmental Industrial Park

Products Supplied:

● Nickel Barrel Plating Lines

● Copper-Nickel-Chrome Electroplating Lines

Certifications

JUNDA places strong emphasis on environmental protection and engineering quality.

Our certifications include:

● Zhejiang Ecological Environment Restoration Engineering Capability Evaluation Certificate

● Environmental Protection Equipment Construction Service Enterprise Qualification Certificate

These certifications demonstrate our professional capabilities in environmental engineering and sustainable surface treatment equipment manufacturing.

Frequently Asked Questions

Why is ultrafiltration necessary before RO?

UF removes suspended solids and colloids that can quickly foul RO membranes, improving overall system performance and membrane lifespan.

Can UF remove dissolved heavy metals?

UF removes metal hydroxide particles but cannot remove dissolved metal ions. RO is typically required for dissolved contaminant removal.

What is the expected membrane lifespan?

Under normal operating conditions, UF membranes typically last 3–5 years depending on water quality and maintenance practices.

Can the system be customized?

Yes. JUNDA provides customized UF systems based on wastewater composition, treatment capacity, and plant layout requirements.

Is the UF system suitable for ZLD projects?

Yes. UF is commonly used as the pretreatment stage in Zero Liquid Discharge (ZLD) systems together with RO and evaporation technologies.

Do you provide installation and commissioning services?

Yes. We provide equipment installation guidance, commissioning, operator training, and long-term technical support.
